Critical Point Dryer; Sample Holder Small Particle

EMS Catalog #70191-01

Overview

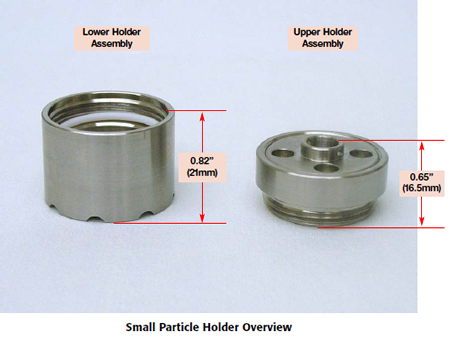

Sample Holder Small Particle

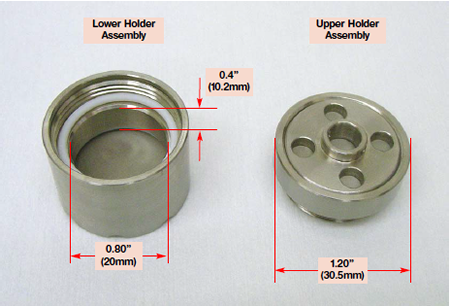

Sample Holder Small Particle

Upper Holder Assembly Overview

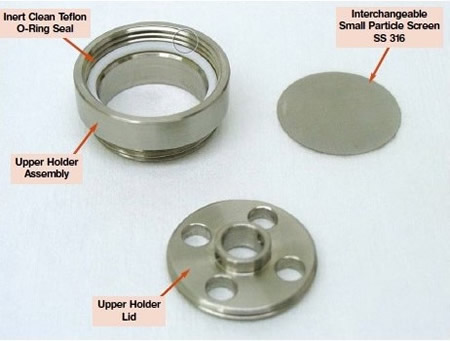

Upper Holder Assembly

Upper Holder Screen Replacement Procedure

Upper Holder Screen Replacement

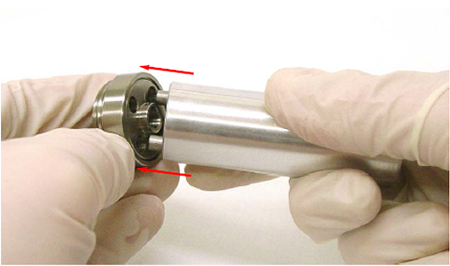

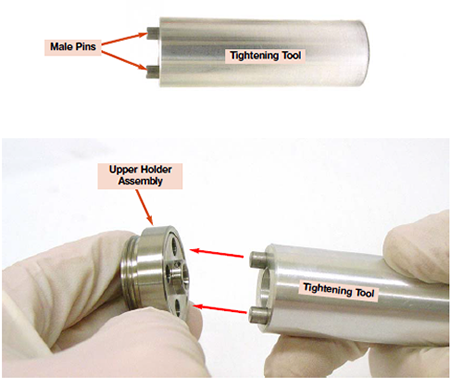

Align the male pins of the Tightening Tool with the female slots of the Upper Holder Assembly Lid and engage.

Upper Holder Screen Replacement

Upper Holder Screen Replacement

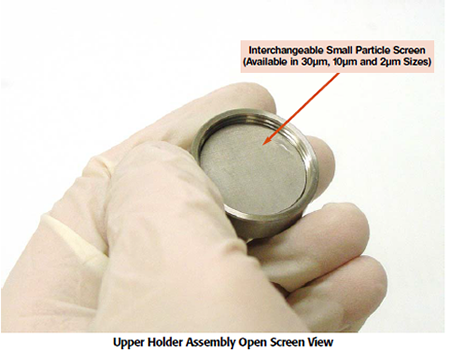

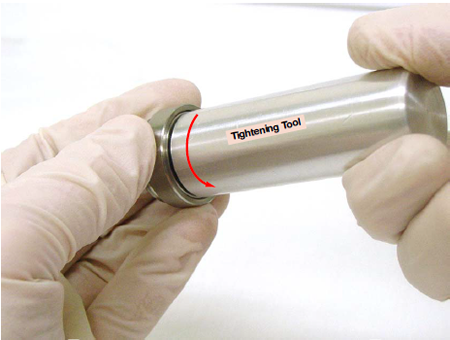

Turn Tightening Tool counter clockwise to remove Upper Holder Assembly Lid. This will provide access to the Small Particle Screen.

Upper Holder Assembly

Lower Holder Screen Replacement Procedure

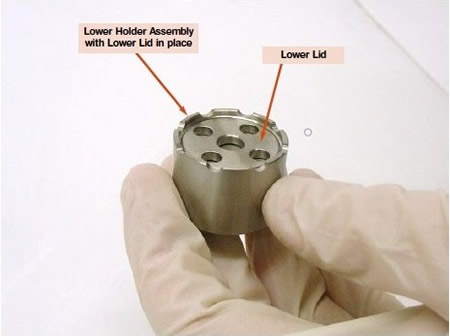

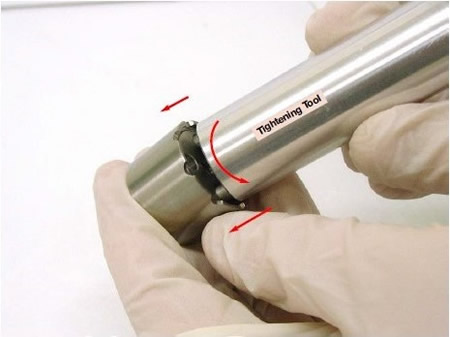

Lower Holder Screen

Lower Holder Screen

Use the same instructions specified for the Upper Holder Screen Replacement to the Lower Holder Assembly.

Sealing Particle Holder

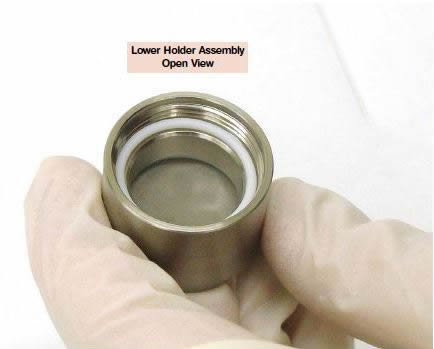

Sealing Particle Holder

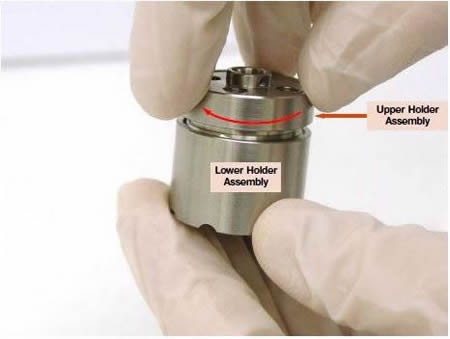

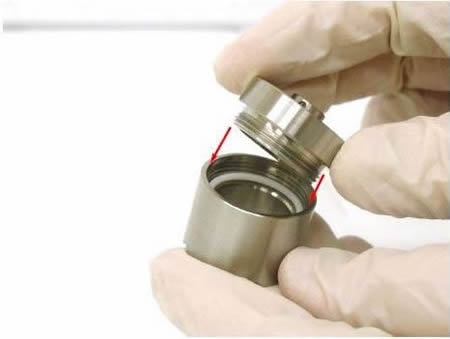

Sealing Particle Holder

Sealing Particle Holder

Carrying Tool for Sealing Particle Holder
