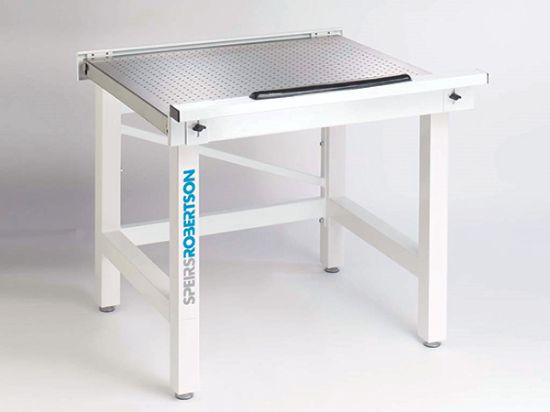

High Performance anti vibration tables for microscopes
- Range of vibration air isolation tables for performance microscopes with ferromagnetic stainless worktop with M6 holes on a 25mm grid
- Unique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrations
- Full active table with self-leveling automatically adjusts to changes in load
- Includes platform guards, range of options includes adjustable arm rest bar with gel pad, castors and shelves
- Sound deadened table construction eliminates unwanted surface vibrations
The isolation table is large enough to support most of the larger microscopes along with their support equipment. The air isolation platform effectively removes most removes most vibrations while combining excellent stability. The rigid frame has leveling feet which ensure the table is in excellent contact with the floor. The damped rolling diaphragm isolators have a low natural frequency of 2Hz which effectively isolates out vibrations above 6Hz well below the frequencies at which typical building vibrations begin to occur. A wide range of option includes: monitor arms, castors, frame and platform shelves and silent air compressors.
Specifications
| Dimensions (LxWxD) |
930 x 780 mm |
| Height |
780 mm (900 mm option) |
| Load Capacity |
100 kg |
| Level Adjustment |
±15 mm |
| Surfaces |
ferritic stainless steel with M6 holes on 25 mm grid |
| Isolators |
4off damped rolling diaphragm active isolators |
Isolation Performance
50Hz
100Hz |
97 percent
99 percent |
| Natural Frequency |
2Hz |
| Air Supply |
5 to 10 bar max via 6 mm airline push fitting |
| Working Temperature |
-20°C to 160°C |
| Shipping Weight |
50-100 kg |
