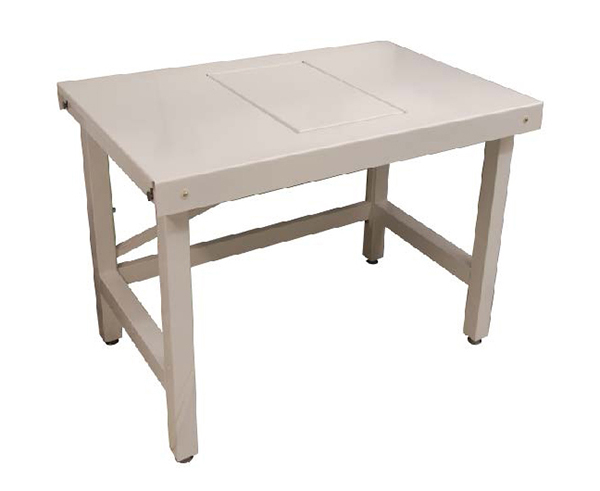

AMD-MA, SS, Active Isolation Area 90x75

High Performance anti vibration platform for ultramicrotomes

  • Active vibrations isolation table for performance microtomes
  • Unique damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrations
  • Active 35 x 55 cm isolation area built into worktop sits on full size table underneath gives excellent stability and maximizes work area
  • Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
  • Sound deadened table construction eliminates unwanted surface vibrations

The use of a built in active isolation table ensures complete isolation from vibrations while combining excellent stability. A top plate sits over the isolation table and has an isolation area of 35 x 55 cm built in for the microtome. Larger isolation areas are also available.The surrounding area of the worktop can thus be used for placing equipment on and for work without disturbing the microscope. The damped rolling diaphragm isolators have a low natural frequency of 2Hz which effectively isolates out vibrations above 6Hz, well below the frequencies at which typical building vibrations begin to occur. A wide range of option includes monitor arms, castors, stainless surface and silent air compressors.


Dimensions (LxWxD) 930 x 780 mm
Active Area (LxW) 350 x 550; other sizes on request
Height 780 mm
Load Capacity 100 kg
Level Adjustment ±15 mm
Surfaces white epoxy (stainless steel option)
Isolators 4off damped rolling diaphragm active air isolators
Isolation Performance

97 percent
99 percent
Natural Frequency 2Hz
Air Supply 5 to 10 bar max via 6 mm airline
Working Temperature -20°C to 160°C
Shipping Weight 90 kg
SKU: 7711
Pack: Each
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
