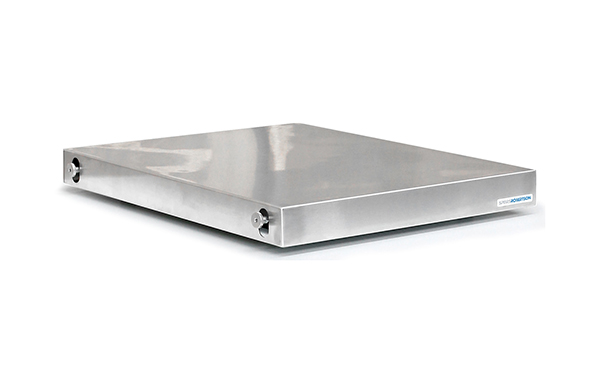

AMF-LX Active Air Isolation Platform-60x60

High performance anti-vibration platforms for balances and microscopes

  • Performance vibration isolation active air isolation platforms for microbalances in sizes 45 x 50 and 60 x 60 cm
  • Unique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99% of vibrations
  • Surface pharma grade stain silicon stainless with Ra of 0.25 microns
  • Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
  • Sound deadened table construction eliminates unwanted surface vibrations

Our range of active air balance isolation platforms is large enough to support most of the larger microbalances. The air isolation platform effectively removes most vibrations while combining excellent stability. The damped rolling diaphragm isolators have a low natural frequency of 2Hz which effectively isolates out vibrations above 6Hz, well below the frequencies at which typical building vibrations begin to occur. The pharma stainless work surfaces have an Ra of 0.25 micron, suitable for the highest levels of clean rooms. A wide range of option includes: tables with guard rails, monitor arms, castors, stainless surface and silent air compressors. A 316 stainless version is available for Class 3 applications.

Specifications

Platform Working Height (mm) 60
Load Capacity 100 kg
Level Adjustment (mm) ±3 mm
Surfaces Pharma stainless steel Ra 0.25 micron
Isolators 4off damped rolling diaphragm, active air self-leveling
Isolation Performance
50Hz
100Hz

97%
99%
Natural Frequency 2Hz
Air Supply 5 bar (max 7) via 6 mm push-fitting
Working Temperature -20°C to 160°C
SKU: 6240
Pack: Each
$3,498.00
