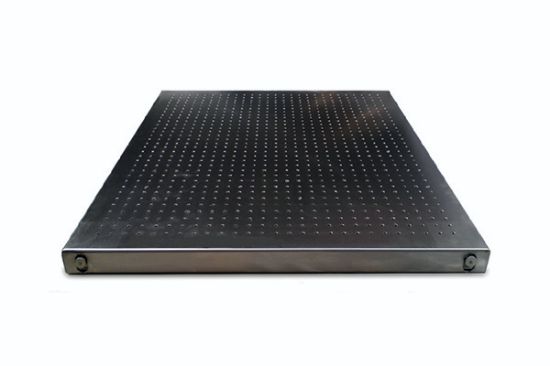

M6 x 25 mm hole pattern
- Wide range of vibration isolation active air isolation breadboards with M6 x 25 mm hole pattern in sizes from 60 x 60 to 120 x 75 cm
- Incorporates unique air damped rolling diaphragm sub 2Hz isolators which remove up to 99% of vibrations
- A modular range of options allows you to configure tables to your own specifications
- Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
- Sound deadened table construction eliminates surface vibrations
Our range of active isolation breadboards allows you to build up systems on a bench with the advantage of a high performance isolation system being built into the breadboard. The air isolation effectively removes most removes most vibrations while combining excellent stability. The damped rolling diaphragm isolators have a low natural frequency of 2Hz which effectively isolates out vibrations above 6Hz well below the frequencies at which typical building vibrations begin to occur. A wide range of option includes: frames, guard rails, monitor arms, castors, stainless surface and silent air compressors.
Specifications
| Platform Working Height (mm) |
60 |
| Load Capacity |
100 kg |
| Level Adjustment (mm) |
±3 mm |
| Surfaces |
Ferritic satin silicon stainless steel |
| Isolators |
4off damped rolling diaphragm, active air self-leveling |
Isolation Performance
50Hz
100Hz |
97 percent
99 percent |
| Natural Frequency |
2Hz |
| Air Supply |
5 bar (max 7) via 6 mm push-fitting |
| Working Temperature |
-20°C to 160°C |
