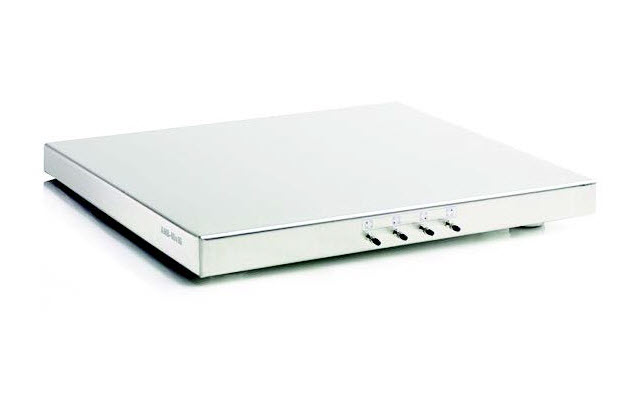

AMP Passive Air Pump Up Platform 60x90, SS

High Performance anti-vibration platforms for microscopes

  • Unique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrations
  • Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
  • Sound deadened construction eliminates unwanted surface vibrations

These platforms are designed to be pumped-up and left alone. Simple to use, they are ideal for use with fixed loads or in applications where pressurised air or gas cannot be used. They support loads up to 100kg and sizes range from 60x60cm to 150x90cm with a 6cm working height.

Specifications

Platform Working Height 60 mm
Load Capacity 100 kg
Level Adjustment ±3 mm
Surfaces stainless steel
Isolators 4off damped rolling diaphragm, passive air pump-up
Isolation Performance
50Hz
100Hz

97%
99%
Natural Frequency 2Hz
Air Supply Pumped via 4 woods cycle valves
Working Temperature -20°C to 160°C
SKU: 6340-SS
Pack: Each
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
Products specifications
Attribute name Attribute value
Material Stainless Steel
