High Performance anti-vibration platforms for microscopes
- Unique air damped rolling diaphragm sub 2Hz frequency isolator removes up to 99 percent of vibrations
- Stainless steel version meets stringent cleanliness requirements and is resistant to almost all forms of chemical attack
- Sound deadened construction eliminates unwanted surface vibrations

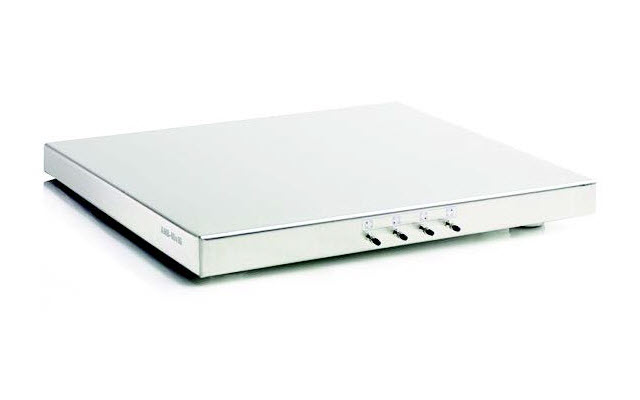

These platforms are designed to be pumped-up and left alone. Simple to use, they are ideal for use with fixed loads or in applications where pressurised air or gas cannot be used. They support loads up to 100kg and sizes range from 60x60cm to 150x90cm with a 6cm working height.
Specifications
Platform Working Height |
60 mm |
Load Capacity |
100 kg |
Level Adjustment |
±3 mm |
Surfaces |
stainless steel |
Isolators |
4off damped rolling diaphragm, passive air pump-up |
Isolation Performance 50Hz 100Hz |
97% 99% |
Natural Frequency |
2Hz |
Air Supply |
Pumped via 4 woods cycle valves |
Working Temperature |
-20°C to 160°C |
