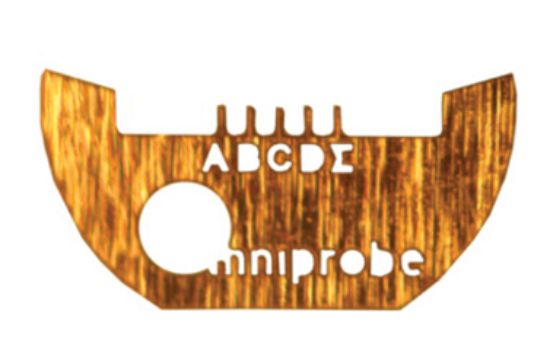

Omni Probe Copper 5-Post Lift-Out Grids

5 post copper lift-out grids specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations, all with vertical bar attachment surfaces. Now with lower profile sides for easier access to outermost posts. 3 mm dia. Packaged in glass vials.

Omniprobe TEM Grid Comparison Chart

Catalog # Posts Material Thickness (Nominal)
Microns
Nominal Post
Downset Microns
Unique Feature
75964-01 3 Copper 30 10
75964-02 3 Molybdenum 30 10 Top Downset Only
75964-03 0 Berylium 25 N/A Half Ring
75964-04 5 Copper 40 10 5th Post is "E"
75964-05 4 Copper 30 10
75964-06 4 Molybdenum 30 10 Top DS Only
75964-07 3 Copper 30 5 Side Access
75964-08 3 Copper 30 5
75964-09 5 Copper 35 5 5th Post is "E"
75964-10 4 Copper 30 5
Cat # Description Pack Price Quote Quantity
Cat #: 75964-09 Description: Omni Probe 5 post Copper Pack: 100 Pack Price: $144.00 Add to Quote:
