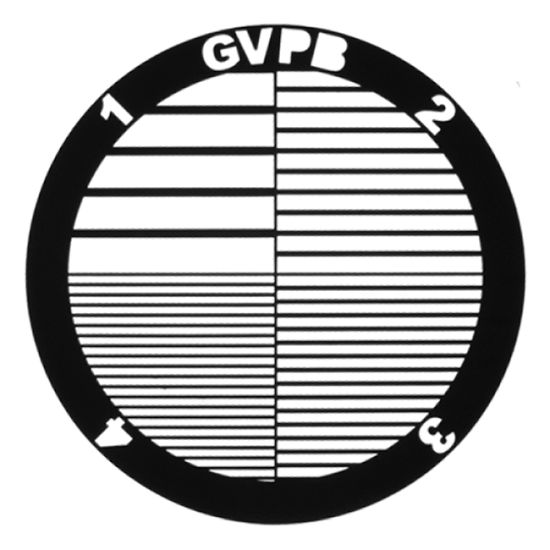

Copper Parallel Bar Grids, 4-Quadrant

GVPB Parallel Bar Grids

This new grid provides four levels of parallel bar specimen support.Quadrants are separated by crenelated bars. Larger areas may be viewed at lower magnification depending on the appropriate specimen thickness.

Grid Specifications, Type GVPB

Quadrant 1 2 3 4
Lines/Inch ~ 100 ~ 200 ~ 300 ~ 400
Pitch (± 0.5 µ) ~ 250 µm ~ 120 µm ~ 83 µm ~ 62 µm
Bar Width ~ 65 µm ~ 45 µm ~ 40 µm ~ 35 µm
Hole Width ~ 185 µm ~ 80 µm ~ 43 µm ~ 27 µm
Manufacturer: Gilder Grids
SKU: G-GVPB-Cu
Pack: 100 Vial
$35.50
