For precise temperature control and efficient mixing
Features
- 15-liter stirring capacity
- Digital temperature and speed control
- Large, 10 x 10-inch ceramic top plate
- Safety LED for hot surface indication
- Controls actual sample temperature when used with optional probe

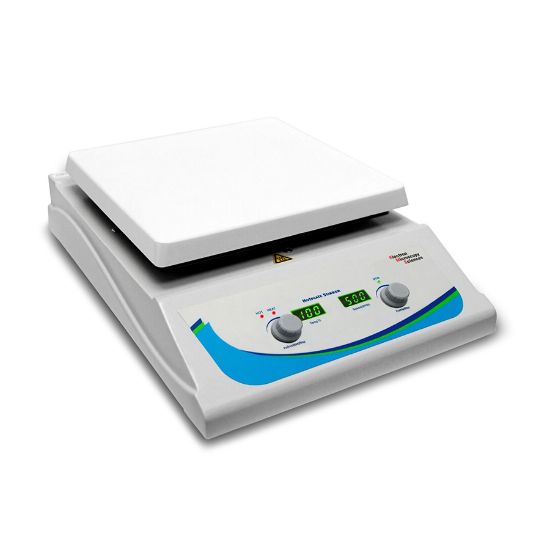

The EMS 10 x 10-inch Digital Hotplate Stirrer offers safe operation and reliable performance for everyday lab use. It features advanced microprocessor controls and a sturdy, chemical-resistant ceramic top plate. A constant monitoring system allows for precise temperature control with rapid heating for quicker boiling times. The powerful motor drive system can efficiently mix larger, more viscous samples.
Compatible with borosilicate glass beakers and other vessels up to 20 liters (15 L maximum stirring volume).
Digital Display: Mixing speed and temperature are shown on a large digital display. A safety LED illuminates when the top plate temperature exceeds 50°C.
Optional Temperature Probe: An external temperature probe (87030-08) can be used for precise control of sample temperature. The probe sends direct feedback to the microprocessor which makes contant adjustments, maintaining the desired sample temperature to within +/- 1°C.
Optional Clamp and Rod Set: An optional clamp and rod set (87030-09) is available for mounting temperature probes, thermometers, etc.
Specifications
Temperature Range |
35°C to 400°C |
Speed Range |
150 to 1500 rpm |
Platform Dimensions |
10 x 10 in./25.4 x 25.4 cm |
Operating Temperature Range |
+4 to +65°C |
Dimensions (W x D x H) |
11.6 x 16.7 x 4.5 in./29.5 x 42.4 x 11.4 cm |
Weight |
16.5 lbs./7.5 kg |
Electrical |
120 V 50-60Hz; 750W |
