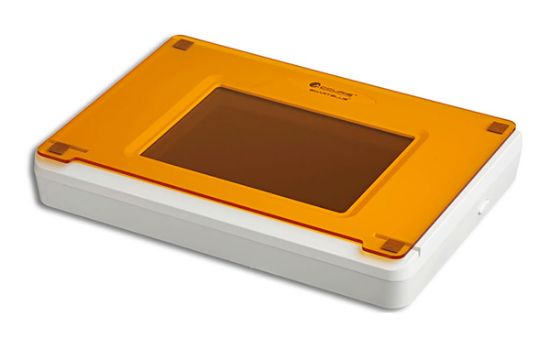

EMS SmartBlue™ Transilluminator

Features

  • Blue light, safe for nucleic acids
  • Uniform illumination (UI Technology)
  • Optimal wavelength (465 nm) for green stains
  • Easily removable, two-position amber shield
  • Can be used with SmartDoc™ for gel imaging with a smart phone

Safer samples, safer for you

New fluorophors have been developed to replace the traditional method of nucleic acid detection with toxic ethidium bromide. They also eliminate the use of DNA damaging UV light, as they are visualized with blue light. The SmartBlue™ Transilluminator is the perfect partner for these new stains. It emits blue light at a wavelength of 465 nm, perfect for excitation of most green fluorophors, as well as many protein stains. Exposing DNA to this wavelength does not cause damage and results in a much higher down stream cloning efficiency as compared to even short UV light exposures. In addition, the blue light is not damaging to the skin and eyes.

Two-position filter cover

The SmartBlue™ Transilluminator requires no special shielding; however, the light does need to be filtered for visualization of the dyes. The amber cover, which rests above the viewing surface and gel, filters out the blue light, allowing the bands to be seen clearly. The cover can be placed at a 60° angle to provide easy access to the gel for band excision. For documentation, the filter cover is easily removed completely.

UI Technology: bright and clear images

Engineered diffusers and filters provide an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in gels. Images obtained using the SmartBlue™ Transilluminator are brighter and more balanced than those obtained using epi-illiminators which light from the sides.

Reliable, durable and long lasting

An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue™ Transilluminator. Unlike those in a UV Transilluminator, the filters in the SmartBlue™ will not solarize and degrade in performance over time. Gel bands can be excised directly on the scratch resistant, glass viewing surface. To save energy, the power switch includes an automatic 5 minute shutoff.

Specifications

Light Source High intensity LEDs
Filter Cover Amber
Wavelength Peak at 465 nm
Viewing Surface 6.6 x 4.75" / 17 x 12 cm
Dimensions Exterior 12.8 (W) x 8.5 (D) x 1.9 (H)" / 30.5 x 21.5 x 5 cm
Capacity 65L or 2.3 cubic feet
Weight 2.6 lbs (1.2 kg)
Electrical 100-240V, 50-60Hz
Warranty 2 years
SKU: 87058-01
Pack: Each
$691.00
