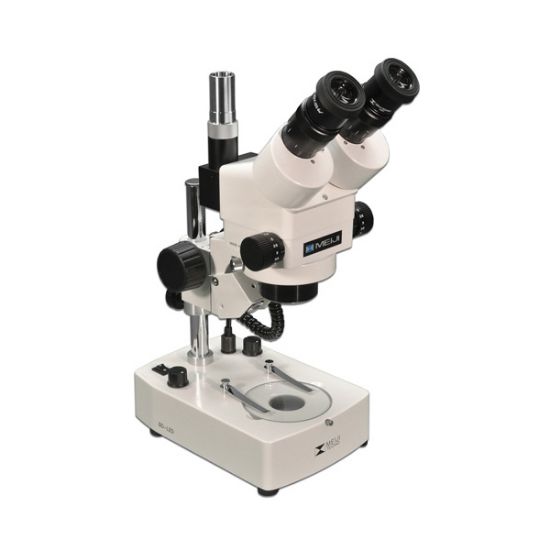

EMZ-8TRH + MA522 + BD-LED

The EMZ-8TRH is a new and improved high eyepoint model with an eye relief of 20.9mm specially designed to give the user more clearance between their eyes and the microscope, and for people who wear glasses. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X). Optional rubber eye guards (MA906) are also available.

BD-LED stand is a popular stand for embryo transfer for equine or bovine or protein crystallography nor translucent specimens. When transmitted oblique illumination is required. The built-in LED illumination gives the specimen no external stress due to having no heat directly on the sample being viewed. The side handle mirror rotation control can be easily manipulated in a ergonomic low profile position.

Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount).

Modular Flexibility:

EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:

Multi-coated optical components, free-form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:

All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:

All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment.

Applications:

EMZ Series zoom stereo microscopes are the perfect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage:

BD-LED Stand

BD-LED is a pole stand with integrated focusing holder. Dual-reflection lens/mirror system provides both incident and transmitted variable intensity LED illumination, independently or simultaneously. Fully rotatable mirror in base provides transmitted brightfield or pseudo-darkfield illumination. Supplied with 94.5mm diameter clear glass stage plate and two stage clips. For use with zoom stereo bodies. Automatic voltage (100v to 240v) sensing power supply.

The BD-LED Pole Stand features include:

• PLS-3 low profile narrow ergonomic LED stand with built in transmitted LED illumination which may be operated independently or simultaneously
• Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
• PLS-3 Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies
• Auto-Voltage Sensing Power supply (100V to 240V)
• ESD-safe, chemical resistant finish
• Cast aluminum alloy construction
• Compact footprint design: Length: 330mm by Width: 300mm by Height: 255mm
• Stable rubber feet and locking pin for head stability
• Compact brightfield and darkfield stand with a small footprint design.
• 94.5mm clear glass stage plate
• Stainless steel stage clips
• LED illumination with light intensity rheostat control for transmitted illumination
• Rotatable fixed mirror in base

NEW High Eyepoint

EMZ-8TRH Body

The EMZ-8TRH Trinocular High Eyepoint with 0.7x-4.5x zoom ratio offers direct light to all three viewing ports simultaneously. The EMZ-8TRH is designed for high-contrast images and has an excellent zoom range of 6.5:1 that is parfocalled all throughout the zoom range. It has Greenough optics for improved image flatness and contrast which results in brighter images at the periphery of the field of view. The EMZ-8TRH offers erect unreversed stereoscopic images providing high resolution observation in precision-oriented semi-conductor, medical device and routine inspection.

Also suitable for eyeglass users.

MA522 Super Widefield Eyepiece

Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount. This 10X Super Widefield Eyepiece is designed to fit high eyepoint models.

Specifications
