Gilder Finder Grids G150 Au

3.05 mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP)

  • Locator Grid
  • Reference/Index Grid

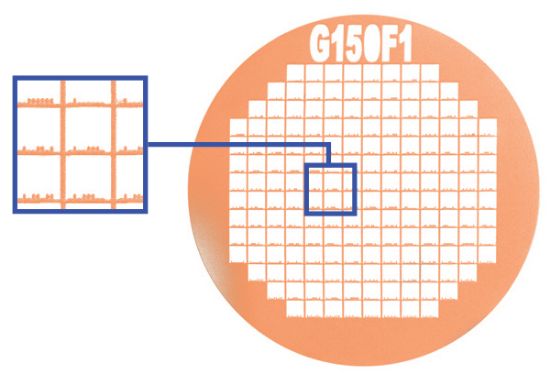

This grid has 172 complete square cells and each cell is identified by an 8 bit base 2 binary number symbol representation. 0 is represented by a short rounded pillar. There is no zero cell.
The first cell located at top left is binary 1, digit 1 is represented by a long pillar at the extreme right position on the bottom horizontal line of cell one: each individual subsequent cell is then easily identified. Lines/Inch ~150.

    Technical Data µm
Type Packed Pitch Hole Bar
150 mesh 50/Vial 165 ±0.5 ~140 variable ~25 variable

* The price for quantities of 10 or more vials will appear as the single vial price in the EMS shopping cart. An adjustment will be made to the cost by the EMS customer service when the order is processed.

Manufacturer: Gilder Grids
SKU: G150F1-Au
Pack: 50 Pack
A: 165 ±0.5
B: ~140 variable
C: ~25 variable
PRICE BREAKS - The more you buy, the more you save
Quantity 10+
Price $79.50
Products specifications
Attribute name Attribute value
Mesh 150
Material Gold
