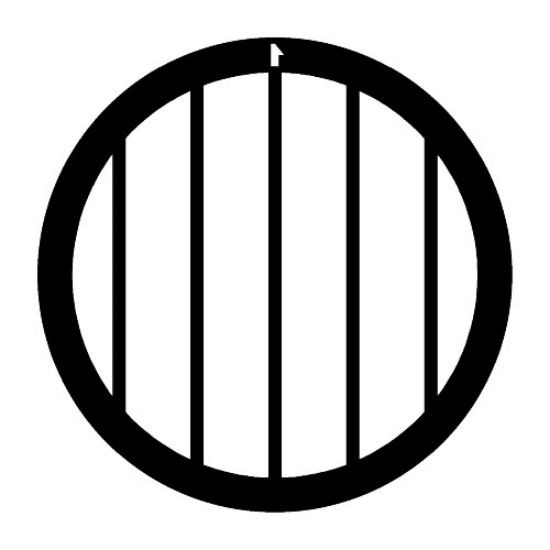

Gilder Grid Parallel Bars

3.05 mm diameter, 0.7 mil (18µm) thickness
Material: Nickel (Ni)

GVPB Parallel Bar Grids

This new grid provides four levels of parallel bar specimen support.Quadrants are separated by crenelated bars. Larger areas may be viewed at lower magnification depending on the appropriate specimen thickness.

Grid Specifications, Type GVPB

Quadrant 1 2 3 4
Lines/Inch ~ 100 ~ 200 ~ 300 ~ 400
Pitch (± 0.5 µ) ~ 250 µm ~ 120 µm ~ 83 µm ~ 62 µm
Bar Width ~ 65 µm ~ 45 µm ~ 40 µm ~ 35 µm
Hole Width ~ 185 µm ~ 80 µm ~ 43 µm ~ 27 µm



    Technical Data µm
Type Packed Pitch Hole Bar
G50P 100/Vial 500 416 84
Manufacturer: Gilder Grids
SKU: G50P-Ni
Pack: 100 Vial
A: 500
B: 416
C: 84
$35.00
PRICE BREAKS - The more you buy, the more you save
Quantity 10+
Price $34.50
Products specifications
Attribute name Attribute value
Material Nickel
