Graphene On Ultra-Fine, 2000 Cu, 2 Layers

CAS No. 7782-42-5


  1. Four thicknesses of CVD graphene
    • Available in either 1, 2, 3-5 or 6-8 layers
  2. TEM Substrate
    • Microporous Copper TEM Grids with Beryllium-Copper Support Aperture
  3. Graphene coverage of the TEM grid is better than 75%

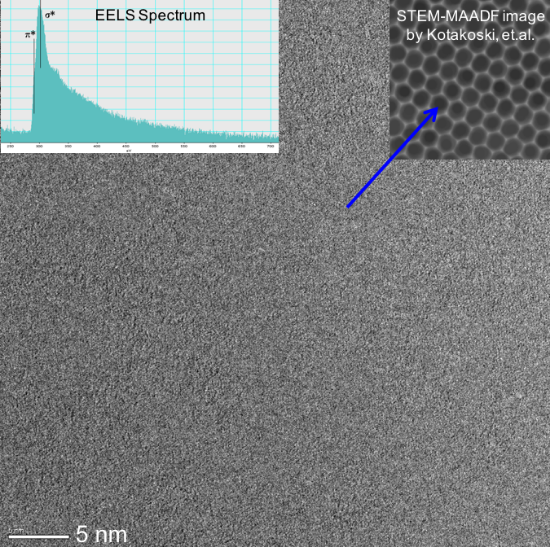

The graphene film appears as a near-transparent to light-grey film on the surface of the red-brown microporous copper TEM grid. For support, the TEM grid is attached using epoxy to a gold-colored beryllium-copper disk with a 2 x 1 mm aperture.


Type Thickness of the Graphene Transparency TEM Grid/AFM Substrate Support Film
2 Layers ~0.7 nm ~92.7% 2000 Mesh Copper Grid N/A
SKU: 2GUF2000Cu-10
Pack: 10 Pack
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
Products specifications
Attribute name Attribute value
Mesh 2000
Material Copper
