Grain Sizing Reticle

Metallurgy

Standard pattern discs for metallurgical stereometric analysis of grain size in polished metal sections.

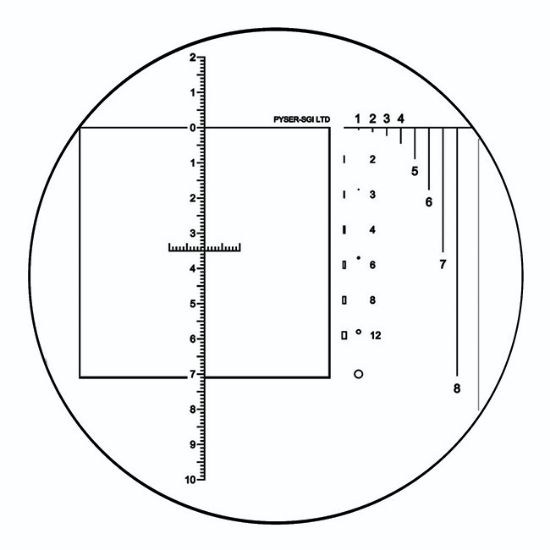

Grain Sizing Pattern EN10247/ISO4976

For the determination of non-metallic inclusion content of steel.

NG60 meets EN 10247. Scaled for use with 10x objective magnification Pattern

Cat # Description Pack Price Quote Quantity
Cat #: 68007-21 Description: NG60 Grain Sizing reticle to En 10247, 21mm Pack: Each Price: $288.00 Add to Quote:
Cat #: 68007-23 Description: NG60 Grain Sizing reticle to En 10247, 23mm Pack: Each Price: $288.00 Add to Quote:
Cat #: 68007-24 Description: NG60 Grain Sizing reticle to En 10247, 24.5mm Pack: Each Price: $337.00 Add to Quote:
Cat #: 68007-25 Description: NG60 Grain Sizing reticle to En 10247, 25mm Pack: Each Price: $337.00 Add to Quote:
Cat #: 68007-26 Description: NG60 Grain Sizing reticle to En 10247, 26mm Pack: Each Price: $337.00 Add to Quote:
Cat #: 68007-27 Description: NG60 Grain Sizing reticle to En 10247, 27mm Pack: Each Price: $337.00 Add to Quote:
Cat #: 68007-50 Description: NG60 Grain Sizing reticle to En 10247, Choose size Pack: Each Price: $376.00 Add to Quote:
Cat #: 68036-21 Description: NG61 Grain Sizing reticle to ISO 4967, 21mm Pack: Each Price: $288.00 Add to Quote:
Cat #: 68036-23 Description: NG61 Grain Sizing reticle to ISO 4967, 23mm Pack: Each Price: $288.00 Add to Quote:
Cat #: 68036-24 Description: NG61 Grain Sizing reticle to ISO 4967, 24.5mm Pack: Each Price: $332.00 Add to Quote:
Cat #: 68036-25 Description: NG61 Grain Sizing reticle to ISO 4967, 25mm Pack: Each Price: $332.00 Add to Quote:
Cat #: 68036-26 Description: NG61 Grain Sizing reticle to ISO 4967, 26mm Pack: Each Price: $332.00 Add to Quote:
Cat #: 68036-27 Description: NG61 Grain Sizing reticle to ISO 4967, 27mm Pack: Each Price: $332.00 Add to Quote:
Cat #: 68036-50 Description: NG61 Grain Sizing reticle to ISO 4967, Choose any size Pack: Each Price: $374.00 Add to Quote:
