HD1500TM Color HD 6MP CMOS Camera Combo

Color HD 6MP CMOS 60FPS/HDMI/USB 2.0 Camera/Annotation & Measurement Software with 11.8in HDMI Monitor

The HD1500TM is a full featured 6 MP camera with a 1/3" CMOS chip. It features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps when connected via HDMI, so there is no lag in the live video feed when moving your specimens or parts.

The full HD (1080x1920) resolution display provides high fidelity images from the HD1500TM with a refresh rate of 60 frames per second. A mounting kit is included that allows the display to be mounted directly on the HD1500TM.

A 0.3X C" mount adapter is needed to attach it to a trinocular microscope.

Use without a PC</h4 With the (supplied) mouse, the user can access menus that provide all the features of the camera, such as exposure, white balance, gamma etc., plus save images and videos to the camera's removable SD card for subsequent offline analysis. All this is achieved without the need for a PC.

1080P Video Recording

Just click the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high speed SD card. It is also possible to play back the videos from the SD card directly. With either HDMI or USB 2.0 data transfer at an uncompressed resolution of 1920 x 1080, sets a precedent. It is one of the fastest USB 2.0 camera's available in the market today that is cost effective.

Note:</h4 <

  • 6MP Still resolution 3264x18
  • 2MP Live video 1920x1080 60 fps (frames per second) via HDMI
  • 2MP Live video 1920x1080 30 fps (frames per second) via USB2.0
  • </ul

    Measurement software</h4The HD1500T is equipped with a complete basic Measurement software that can be utilized when connecting directly to a PC. The HD1500T provides measurement functionality when connected to a PC including: freehand lines, rectangles, polygons, circles, bi-circles, angles, point-line distance and much more. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make measurements more convenient and simple.

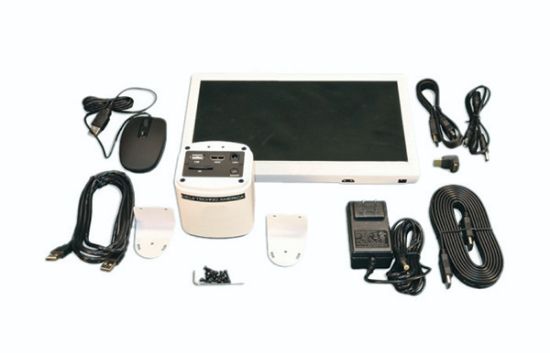

    Includes:

    • HD1500TM Camera
    • 11.8in HDMI Monitor
    • HDMI Cable
    • USB Cable
    • 12V AC/DC Power adapter
    • SD Card
    • Retina Screen
    • Mouse
    • "L" Bracket Adapter for Monitor to Camera connectivity
    • Application Metrics Software ISCapture
    • li>Packing Boxx
Cat # Description Pack Price Quote Quantity
Cat #: 95221 Description: HD1500TM Color HD 6MP CMOS Camera Combo Pack: Each Price: $1,980.00 Add to Quote:
