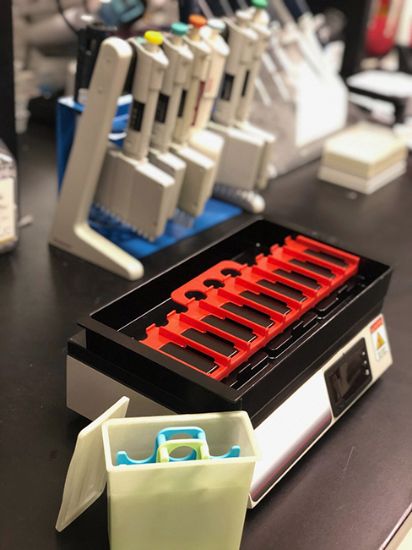

ihcDirect Slide Manager with 71319-220

The ihc Slide Manager is designed to help users organize and process up to nine slides for immunohistochemistry, immunocytochemistry, or ISH (FISH) testing. This simple-to-use device is constructed of electrophoretically painted die-cast aluminum. It resists harsh chemicals and cleans up easily. The Slide Manager base pan holds up to 300ml of fluid such as wash buffer or other waste streams.
If desired, the ihcDirect Slide Manager will pass heat through to the surface from a Slide Warmer or similar heated flat surface. A corresponding red Slide Manager Rack is included. The Slide Manager may be used with or without the Rack, as well as with or without a Slide Warmer.

Benefits of Using the ihc Direct Slide Manager with a Slide Warmer

Using the ihcDirect Slide Manager in combination with slide warming device may help laboratory personnel maintain consistency between users and conserve bench space. By retaining volumes of wash buffer solutions the ihcDirect Slide Manager can help users keep test areas clean and uncluttered. The ihcDirect Slide Manager Pan is able to contain more than 200ml of wash buffer fluid, which is more than sufficient to thoroughly wash at least 9 slides.

Specifications:

Construction Electrophoretically Painted Die-Cast Aluminum
Overall Size 10-7/16" x 6" x 1-1/4" (265 x 153 x 31 mm)
Wash Fluid Well Capacity 300 mL
Slide Size Dimensions 25.5 x 26.5 ± 0.5 mm
Weight 1 oz.
Dimensions 8 x 7 x 1 inch

Ordering Information

Combining the ihcDirect Slide Manager with Slide warmer helps maintain consistency between users and conserve bench space in laboratories. The Manager pan is capable of containing more than 200mL of wash buffer fluid.

SKU: 71319-05
Pack: Each
$605.00
Products specifications
Attribute name Attribute value
Voltage 220V
