Linear (X&Y axis) Stage Micrometer, Model IAM-2

Model IAM-2

Linear (X & Y axis) Scale

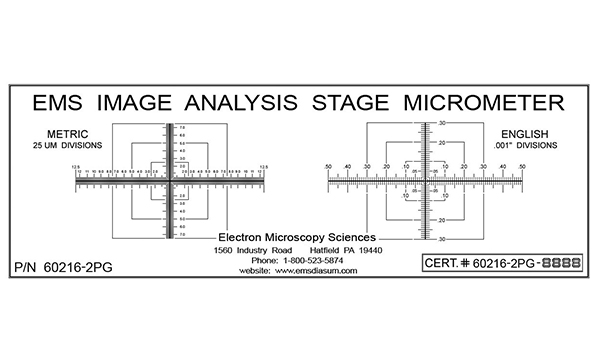

A dual axis linear micrometer that can accurately calibrate both X & Y directions without rotation, for optical magnification, and camera aspect ratio using single standard. In addition, it can be used to calibrate and check linear stage motion or related auto measuring systems. Scales are in both English and Metric measurements.

Specifications

Overall Size 1" x 3" (25 mm x 75 mm)
Scale Image 1" (right scale); 25 mm (left scale)
Y = 0.60" (right scale); 15 mm (left scale)
Divisions English = 0.001", Metric = 25┬Ám (0.025 mm)
Image Positive image/Chrome on glass (PG)
SKU: 60216-2PG
Pack: Each
$370.00
