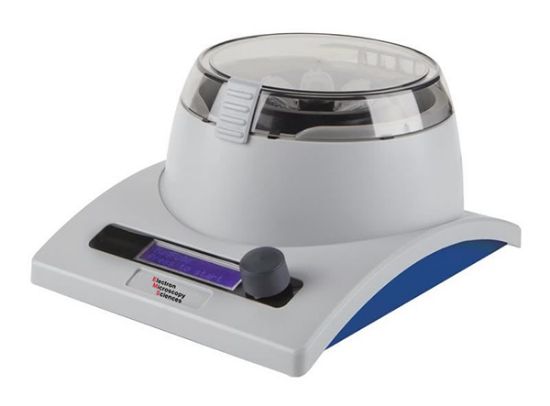

MagFuge Centrifuge and Magnetic Stirrer, Gray/Blue

The MagFuge is the industry's first high-speed centrifuge and magnetic stirrer combined into one unit. This design innovation enables a substantial cost savings for labs by not having to purchase two pieces of equipment, a stirrer and a centrifuge, because the MagFuge does it all.

Features

  • Easy to use
  • Ultra-quiet operation
  • Made from durable chemically resistant ABS and polycarbonate
  • Easy to clean and maintenance free
  • Compact low-profile design
  • US Design Patent No. D814,045
  • Utility Patent Pending
  • Community Design No. 003515337-0001-0002
  • European Patent App. 3 246 088
  • 3-year warranty

Specifications

Power Universal 12V DC input 4 cord sets: Low voltage, double insulated power adapter
Weight 1.85 kg (4.08 lb)
Certifications CE, SGS, RoHS2, WEEE
Operating Temp Range 2°C to 40°C
Max. Relative Humidity Non-condensing, 80% for temperatures up to 31°C decreasing linearly to 50% R.H. at 40°C

High-Speed Mini Centrifuge

The high-speed Centrifuge (12,500 RPM) is designed to give you maximum speed and flexibility while being comfortable and easy to use.

  • Ideal for most protocols requiring fast spins (12,500rpm / 9,800 x g), and appropriate for PCR, microfilter cell separation, and HPLC protocols
  • Adjustable time (30 seconds to 60 minutes) and speed (500 to 12,500 RPM)
  • Variable speed can be set in RPM or RCF and has rapid acceleration and fast controlled breaking
  • Two rotors included, 12 place for 1.5/2.0 ml tubes and 6 place for 5 ml tubes with adapters for additional tube sizes
  • Manual lid override allows users to open lid in case of a power failure and prevents loss of samples
  • Safety features help ensure it will not operate when the lid is open, a rotor is jammed, or the unit is out of balance

Specifications

Speed Range 500 to 999 rpm (increments of 1)
1,000 to 5,000 rpm (increments of 5)
5,000 to 12,500 rpm (increments of 25)
RCF 16 to 9,783 x g (max RCF calculated)
Capacity 12 place 1.5/2.0 ml tube rotor: 24 ml total maximum liquid volume
6 place 5 ml tube rotor: 30 ml total maximum liquid volume
Run Time Ranges 30 seconds to 60 minutes (5 second increments)

Magnetic Stirrer

The high-performance Magnetic Stirrer (3L Plus) is designed to provide a powerful magnetic coupling that ensures consistent accurate alignment of the stir bar that significantly reduce the chance of spin-outs.

  • Ideal for work with sensitive samples such as cell lines and protocols requiring more aggressive mixing to quickly achieve full dilution of samples in solution
  • Multiple stirring modes, clockwise, c. clockwise and oscillate enable protocols to be controlled precisely for reproducible results
  • Adjustable time (30 seconds to 60 minutes or continuous) and speed (50 to 2,500 RPM)
  • After hours of continuous use, the unit remains cool ensuring sample integrity
  • Sensor technology prevents the stirrer rotor from being used above 2,500 RPM helping to protect users and prevent unit damage
  • Two silicone mats are included to help prevent spills and to help keep vessels stable
  • High-quality rare-earth magnets are used in the stirrer rotor to ensure the strongest magnetic coupling
  • Two rare-earth stir bars (40 x 12 mm) included have PTFE coating for chemical resistance

Specifications

Speed Range 50 to 999 rpm (increments of 1); 1,000 to 2,500 rpm (increments of 5)
Capacity 3L total maximum vessel liquid volume. Diameter of vessel not to exceed 130 mm (6.70")
Run Time Ranges Stirrer Mode: 30 seconds to 60 minutes or continuous (5 second increments)
Oscillating Stirrer Mode: 1 second to 60 minutes or continuous
Oscillating Period: 30 seconds to 15 minutes
Stir Bar Dimensions 40 x 12 mm cylindrical shape, rare-earth
Plate Dimension Approx 130 mm diameter

Package Includes

  • MagFuge®
  • Three Rotors: 5 ml Tube Rotor, 1.5/2.0 ml Tube Rotor, Stirrer Rotor
  • 12 Tube adapters 0.2 ml
  • 12 Tube adapters for 0.5 ml
  • 2 Silcone mats for stirrer lid
  • 2 Rare-Earth PTFE coated stir bars stir bars
  • 1 Low voltage, double insulated power adapter with 4 cord sets
SKU: 72355-01
Pack: Each
$1,341.00
Products specifications
Attribute name Attribute value
Color Gray/Blue
Warranty 36 months
