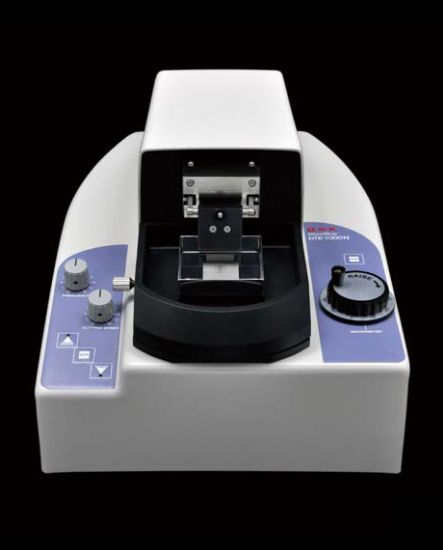

MicroSlicer DTK-1000N

Available in two models - the automated MicroSlicer Zero1N model and the lower-cost manually operated DTK-1000 model - are the standard models for cutting live tissues.

In the Zero1N Model, vertical up and down movement of the specimen is made electrically by a built-in stepping motor. The built-in retraction mechanism lowers the specimen after each sectioning to protect the damage of the specimen surface by the blade backing to the initial position. This improves usability and performance.

The DTK-1000 Model, combines high basic performance and economic efficiency. The retraction mechanism is not available in this model.

Optional Accessories

Available options include a loupe and a large ice bath with designated specimen tray.

Applications

  • Physiology
  • Neuroscience/Neurochemistry
  • Pharmacology
  • Toxicology
  • Pharmacokinetics
  • Histochemistry/Cytochemistry
  • Enzyme cytochemistry at electron microscopic level
  • Tissue sectioning for histopathology
  • Botany (horticultural science, breeding, research, plant pathology)
  • Regenerative medicine/Tissue engineering
  • Tissue culture
  • Other research areas using live tissue sections
Specifications Models Zero 1N and DTK-1000N
Blade vibration 0-55Hz
Vibration width 2 mm (fixed)
Forward speed 0-68 mm/min
Back speed 104 mm/min
Vertical movement 10 mm (manual operation)
Area of sectioning 25 x 30 mm
Outer size 300 x 500 x 300 mm
11.8 x 19.7 x 11.8 in
Weight 21 kg
Power 100/120/220/240V 1A 50/60Hz

Combines high basic performance and economic efficiency. Manual operation of the elevating mechanism which controls section thickness.

SKU: 93304
Pack: Each
$13,750.00
