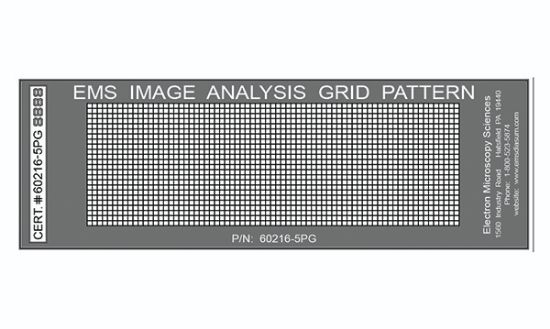

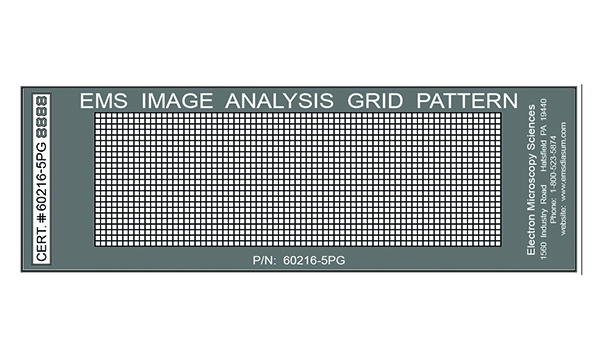

Model Iam-5L, Grids, Large Size, 1000µm Pitch - SALE

Model IAM-5

Stage Mapping – Grid Pattern

This ideal standard is for verifying or qualifying multiple image analysis parameters such as optical distortion, alignment between systems or optical paths, and cell areas for particle counting. The image area is 20 mm x 50 mm.

Clear Aperture Opaque Lines Pitch
980 µm square 20 µm square 1,000 µm


Overall Size 1" x 3" (25 mm x 75 mm)
Image Forming Material Negative image/Chrome on glass (NG)
SKU: 60216-5LNG
Pack: Each
Your price: $216.90
