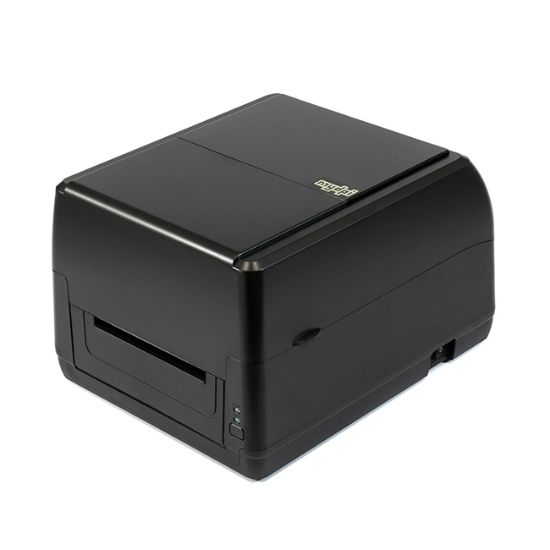

Ideal for more durable printing of text and barcodes
Prints small text and crisp barcodes with ease, using thermal transfer ribbon for extra durability. Powered by Label LIVE design and print software (included) that works on both Windows and macOS. Plug-and-print functionality without installing drivers. Import spreadsheet data and print batches of unique barcoded labels. Label designs can be saved for future use and shared with others. The myDPI 300x1 features multiple adjustable sensors that allow for compatibility with a wide variety of direct thermal and thermal transfer labels, including Thermal Transfer Cryo-Tags® and Direct Thermal Cryo-Tags®.
Features
- Adjustable label sensor for off-center holes, gaps, and black line labels
- Use labels as narrow as 0.79" (20mm) wide
- Full-size print width of 4" (102mm) with 4.6875" maximum media width
- Traditional internal label roll holder with 4.25" (108mm) diameter capacity
Requirements
Use with Label LIVE design software (included), no drivers required. Prints one color: black. USB-only, no wireless, no bluetooth. Works with Windows 10/11 and macOS, (not iOS, not Android, not Chromebook).
| |
| Specifications |
| Media |
| Thermal Transfer |
Continuous, gap, black mark |
| Direct Thermal |
Continuous, gap, black mark |
| Width |
1" – 4.6" (25.4mm – 118mm) |
| Length |
0.39" – 35" (10mm – 889mm) |
| Thickness |
2.36 mil – 10 mil (.06mm – 0.254mm) |
| Inner Diameter Core |
1" to 3" (25.4mm to 76.2mm) |
| Outer Diameter |
5" (127mm) |
| Ribbon (Purchased Separately) |
| Winding |
Coated Side Out |
| Widths |
Full 4.3" (109mm), Half 2.3" (58.4mm) |
| Core |
1" (25.4mm) |
| Operating Environment |
| Temperature |
41°F – 104°F (5°C – 40°C) |
| Humidity |
25% – 85% non-condensing |
| Storage |
| Temperature |
-40°F – 140°F (-40°C – 60°C) |
| Humidity |
10% – 90% non-condensing |
| Software |
| Label LIVE |
Windows 10 or newer, macOS |
| Optional Drivers |
Windows, macOS |
| External |
| Interface |
USB 2.0 |
| Width |
9.13" (232mm) |
| Height |
6.73" (171mm) |
| Depth |
11.1" (282mm) |
| Weight |
5.64 lb (2.56 kg) |
| Power |
| Input |
AC 100~240V |
| Output |
DC 24V, 2.5A, 60W |
| |
|
