The further evolution of vibrating blade tissue slicers.

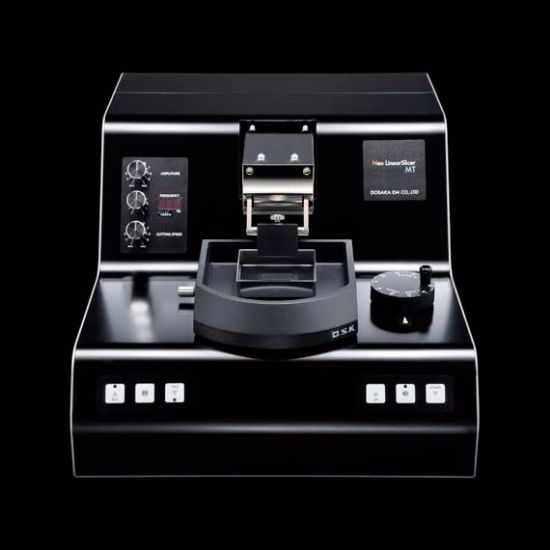

Available in two models, the high performance Neo-Linear Slicer AT model and the standard Neo-Linear Slicer MT model, these slicers provide excellent performance when it comes to producing better, much thinner, sections of live tissues.
Each uses steel plate housing instead of plastic to eliminate defective vibrations caused by resonance as much as possible. Both feature conveniences such as detachable, sterilizable blade holders and deep ice trays.
The flagship AT Tissue Slicer has automatic functions, making it very useful when you need a large number of slices or when making continuous sections.
The auto control program and control platform has been modernized, providing for easier workflow and maintenance.
Optional Accessories
Available options include a loupe, a magnification mirror with LED lighting, and a large ice bath with designated specimen tray.
Applications
- Physiology
- Neuroscience/Neurochemistry
- Pharmacology
- Toxicology
- Pharmacokinetics
- Histochemistry/Cytochemistry
- Enzyme cytochemistry at electron microscopic level
- Tissue sectioning for histopathology
- Botany (horticultural science, breeding, research, plant pathology)
- Regenerative medicine/Tissue engineering
- Tissue culture
- Other research areas using live tissue sections
| Specifications |
Models AT and MT |
| Blade vibration |
50-100Hz |
| Vibration width |
0-2 mm |
| Abnormal vibration |
2 µm at the maximum/1µm regularly |
| Forward speed |
0-44 mm/min |
| Back speed |
71 mm/min |
| Vertical movement |
15 mm |
| Area of sectioning |
30x30 mm |
| Outer size |
345 x 500 x 240 mm
13.6 x 19.7 x 9.4 in |
| Weight |
35 kg |
| Power |
100V 2A 50/60Hz |
