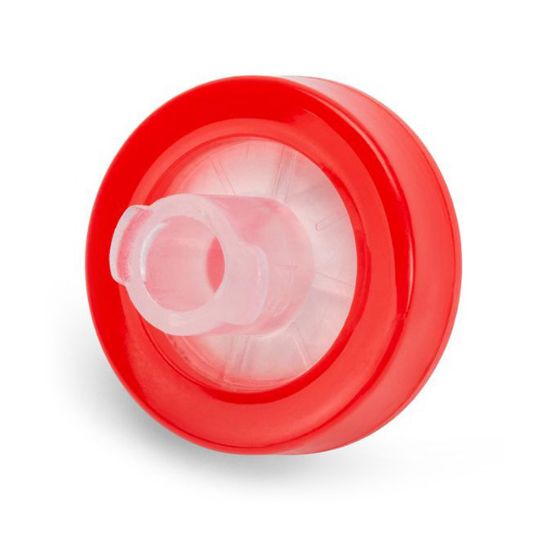

Non-Sterile, 0.45μm, 13 mm, Red, PTFE Hydrophilic

Cost-effective high-quality filtration that decreases instrument downtime and improves the reliability of experimental results.

Diamond PureFlow syringe filters feature a polypropylene housing secured around a membrane with a molded polypropylene sealing ring. This double injection molding provides a durable filter built to withstand pressures higher than most alternatives.


  • Performance: High flow rates and low absorption membranes minimize sample loss.
  • Simplicity: Color-coded rings allow easy identification of membrane and filter media type. Each filter is clearly marked with a code that indicates membrane material and pore size.
  • Strength: The bonded outer ring provides strength under higher pressure.
  • Efficiency: Integral PP pre-filter provides both fast filtration and high flow rates.
  • Quality: Manufacturing process certified to ISO 9001 standards.

Available in a variety of membrane types, filter diameters, and membrane porosities to meet nearly all applications.

Membrane Types

PTFE (Polytetrafluoroethylene) Hydrophilic Membrane
  • "Universal" membrane- ideal for both aqueous and organic samples
  • Strong chemical stability and inertia
  • Strong acid and alkali solvent filtration
  • Chemically resistant to all solvents
  • pH Range: 1-14


Diameter 13 mm 30 mm
Housing Material PP PP
Filtration Area (cm2) 0.092 4.9
Holdup Volume (µl) <10 <120
Volume Throughput (ml) 10 100
Connections (Inlet/Outlet) Female Luer Lock Inlet/Male Luer Slip Outlet
Max Operating Pressure (psi) 87 87
Max Operating Temperature (°C) 100 100
Prefilter PP PP

Non-Sterile Syringe Filters

Non-sterile Diamond PureFlow syringe filters are perfect for a wide range of sample and filtration applications. Non-sterile filters are useful in analytical chemistry or sample preparation, protecting analytical equipment from particle contamination, and HPLC operations.

  • Bulk packaged with membrane type and membrane porosity clearly indicated on each filer
  • PP microfiber pre-filter layer improves filtration of particulate-laden fluids
SKU: 67030-40
Pack: 100 Pack
