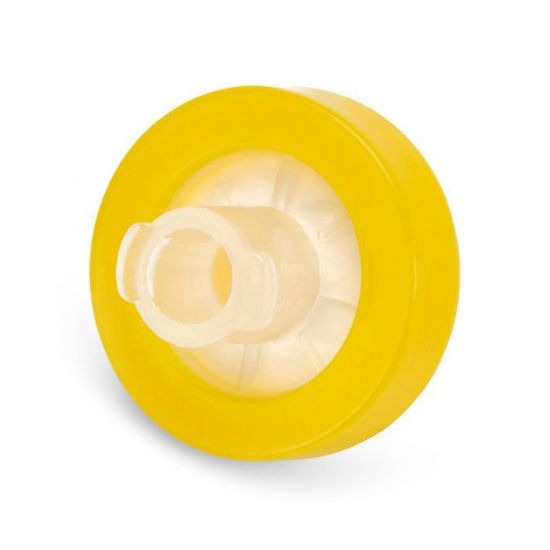

Cost-effective high-quality filtration that decreases instrument downtime and improves the reliability of experimental results.
Diamond PureFlow syringe filters feature a polypropylene housing secured around a membrane with a molded polypropylene sealing ring. This double injection molding provides a durable filter built to withstand pressures higher than most alternatives.
Benefits
- Performance: High flow rates and low absorption membranes minimize sample loss.
- Simplicity: Color-coded rings allow easy identification of membrane and filter media type. Each filter is clearly marked with a code that indicates membrane material and pore size.
- Strength: The bonded outer ring provides strength under higher pressure.
- Efficiency: Integral PP pre-filter provides both fast filtration and high flow rates.
- Quality: Manufacturing process certified to ISO 9001 standards.
Nylon Membrane |
- High protein binding- not used when protein recovery is important
- Suitable for aqueous or organic samples
- Not compatible with acids, bases, or for use in protein recovery
- Ideal for general laboratory, chemical and beverage filtration, and HPLC applications
- pH Range: 2-13
|
Specifications
Diameter |
13 mm |
Housing Material |
PP |
Filtration Area (cm2) |
0.092 |
Holdup Volume (µl) |
<10 |
Volume Throughput (ml) |
10 |
Connections (Inlet/Outlet) |
Female Luer Lock Inlet/Male Luer Slip Outlet |
Max Operating Pressure (psi) |
87 |
Max Operating Temperature (°C) |
100 |
Prefilter |
PP |
Non-Sterile Syringe Filters
Non-sterile Diamond PureFlow syringe filters are perfect for a wide range of sample and filtration applications. Non-sterile filters are useful in analytical chemistry or sample preparation, protecting analytical equipment from particle contamination, and HPLC operations.
- Bulk packaged with membrane type and membrane porosity clearly indicated on each filer
- PP microfiber pre-filter layer improves filtration of particulate-laden fluids
