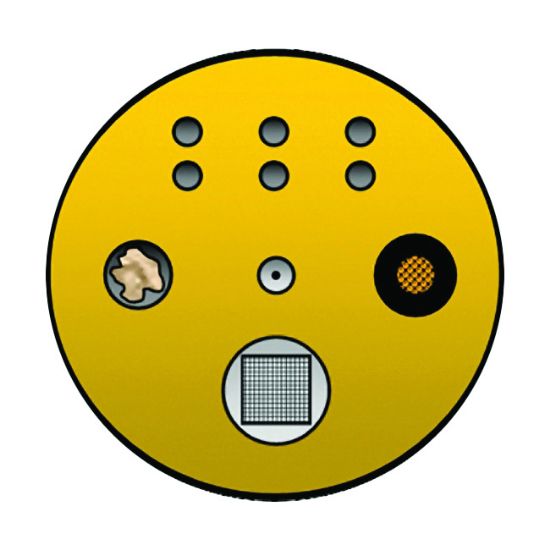

A new product that allows the user of the Scanning Electron Microscope to check the performance of their instrument to make sure that it is working within the manufactures specification.
A useful tool to all Scanning Electron Microscope users such as Researchers, Technologists, Quality Assurance Departments, and SEM users with Energy Dispersive or Wavelength Dispersive X-ray systems fitted, because it enables them to readily assess the state of their instrument.
Co (Cobalt) is compulsory for checking Energy Dispersive analyzers. The customer can choose any other five from our lists, with the exception of the SRM 481, SRM 482 and SRM 1872.
2. Duplex Brass
Used for checking the contrast efficiency of Back Scattered detectors and it is capable of detecting two major copper/zinc phases of 0.1 atomic number difference.
3. Faraday Cage
A Faraday cage is used for measuring the current of the beam at the specimen plane. The beam of electrons is focused inside the hole by increasing the magnification so that when the hole fills the screen all the electrons are trapped and a true measure of current is achieved. The Hole size in FC `aperture' - 150 microns.
Is a sample of gold crystals on a carbon background which is useful for checking the performance of the SEM under high-resolution conditions i.e. finer than a 10 micron probe.
Silicon test specimen with squares of periodicity 9.9 micrometers lines about 1.9 micrometers wide which has formed by electron beam lithography - used for magnification calibration and assessing image distribution.
Is mounted on a block 25 mm diameter x 5 mm thick
