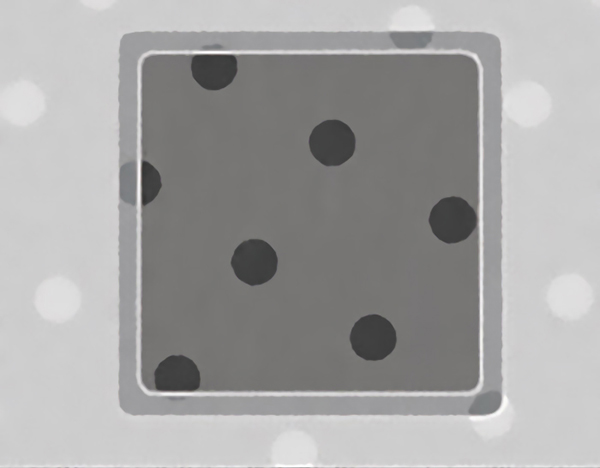

R 5/10 Holey Carbon Films on Grids

QUANTIFOIL® Holey Carbon Films

QUANTIFOIL is a perforated support foil with pre-defined hole size, shape and arrangement. It has advantages in electron microscopy (EM) or low-energy electron point source (LEEPS) microscopy when compared with conventional holey film.

QUANTIFOIL is offered with circular and square, orthogonal arranged holes. Films with different hole sizes and bar widths are available. Carbon is the standard material that makes the foil.

QUANTIFOIL is a superior quality of holey carbon film, which facilitates the use of automation in TEM. (e.g. The National Resource for Automated Molecular Microscopy, at the Scripps Research Institute, has developed a system, called Leginon, for automatically acquiring images from a transmission electron microscope).

The surface properties of QUANTIFOIL holey carbon support film, especially the wetting properties, may have to be adapted according to one's particular requirements. Untreated aging QUANTIFOIL tends to be hydrophobic. Hydrophillicity of the foil can be achieved by glow discharging in residual air or by metal coating.

QUANTIFOIL in low-energy electron point source (LEEPS) microscopy. QUANTIFOIL with a regular pattern is required in order to be able to distinguish an object, which is spanned over a hole. An object cannot be discriminated from the support in the case of conventional holey support film. (H.W. Fink & C. Schonenberger, University of Basel, used QUANTIFOIL for the measurement of electrical current through DNA molecules.)

The foil is ~12nm thick and mounted on either copper, nickel or gold grids with either square or round holes of different sizes.

Holey films with 2µm round holes are used at magnifications between 30,000x and 40,000x.

QUANTIFOIL is generally delivered as a carbon foil; it can be reinforced with plastic film. The standard thickness for the carbon foil is 12nm; other thicknesses between 10 and 25nm can be made upon request. The grids are packed with their coated side toward the center of the grid box.

QUANTIFOIL Type Hole Size
in µm
Spacing
in µm
Period
in µm
R 0.6/1 0.6 1.0 1.6
R 1/2 1.0 2.0 3.0
R 1/4 1.0 4.0 5.0
R 1.2/1.3 1.2 1.3 2.5
R 1.2/20 1.2 20.0 21.2
R 2/1 2.0 1.0 3.0
R 2/2 2.0 2.0 4.0
R 2/4 2.0 4.0 6.0
R 3/3 3.0 3.0 6.0
R 3/5 3.0 5.0 8.0
R 3.5/1 3.5 1.0 4.5
R 5/10 5.0 10.0 15.0
R 5/20 5.0 20.0 25.0
R 6/6.5 6.0 6.5 12.5
R 6/100 6.0 100.0 106.0
R 10/5 10.0 5.0 15.0
R 10/10 10.0 10.0 20.0
R 10/20 10.0 20.0 30.0
R 17/5 17.5 5.0 22.5
Cat # Description Pack Price Quote Quantity
Cat #: Q310CR510 Description: Quantifoil® R 5/10, 300 Mesh, Cu - SALE Pack: 10 Pack Price: $99.50 Add to Quote:
Cat #: Q325CR510 Description: Quantifoil® R 5/10, 300 Mesh, Cu Pack: 25 Pack Price: $244.00 Add to Quote:
Cat #: Q350CR510 Description: Quantifoil® R 5/10, 300 Mesh, Cu Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q3100CR510 Description: Quantifoil® R 5/10, 300 Mesh, Cu - SALE Pack: 100 Pack Price: $948.50 Add to Quote:
Cat #: Q310NR510 Description: Quantifoil® R 5/10, 300 Mesh, Ni Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q325NR510 Description: Quantifoil® R 5/10, 300 Mesh, Ni Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q350NR510 Description: Quantifoil® R 5/10, 300 Mesh, Ni Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q3100NR510 Description: Quantifoil® R 5/10, 300 Mesh, Ni Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q310AR510 Description: Quantifoil® R 5/10, 300 Mesh, Au Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q325AR510 Description: Quantifoil® R 5/10, 300 Mesh, Au Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q350AR510 Description: Quantifoil® R 5/10, 300 Mesh, Au Pack: 50 Pack Price: $620.00 Add to Quote:
Cat #: Q3100AR510 Description: Quantifoil® R 5/10, 300 Mesh, Au Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q2100AR510 Description: Quantifoil® R 5/10, 200 Mesh, Au Pack: 100 Pack Price: $1,166.00 Add to Quote:
Cat #: Q2100CR510 Description: Quantifoil® R 5/10, 200 Mesh, Cu Pack: 100 Pack Price: $948.50 Add to Quote:
Cat #: Q2100NR510 Description: Quantifoil® R 5/10, 200 Mesh, Ni Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q210AR510 Description: Quantifoil® R 5/10, 200 Mesh, Au Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q210CR510 Description: Quantifoil® R 5/10, 200 Mesh, Cu Pack: 10 Pack Price: $99.50 Add to Quote:
Cat #: Q210NR510 Description: Quantifoil® R 5/10, 200 Mesh, Ni Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q225AR510 Description: Quantifoil® R 5/10, 200 Mesh, Au Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q225CR510 Description: Quantifoil® R 5/10, 200 Mesh, Cu - SALE Pack: 25 Pack Price: $244.00 Add to Quote:
Cat #: Q225NR510 Description: Quantifoil® R 5/10, 200 Mesh, Ni Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q250AR510 Description: Quantifoil® R 5/10, 200 Mesh, Au Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q250CR510 Description: Quantifoil® R 5/10, 200 Mesh, Cu - SALE Pack: 50 Pack Price: $466.50 Add to Quote:
Cat #: Q250NR510 Description: Quantifoil® R 5/10, 200 Mesh, Ni Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q4100AR510 Description: Quantifoil® R 5/10, 400 Mesh, Au Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q4100CR510 Description: Quantifoil® R 5/10, 400 Mesh, Cu Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q4100NR510 Description: Quantifoil® R 5/10, 400 Mesh, Ni Pack: 100 Pack Price: $0.00 Add to Quote:
Cat #: Q410AR510 Description: Quantifoil® R 5/10, 400 Mesh, Au Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q410CR510 Description: Quantifoil® R 5/10, 400 Mesh, Cu Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q410NR510 Description: Quantifoil® R 5/10, 400 Mesh, Ni Pack: 10 Pack Price: $0.00 Add to Quote:
Cat #: Q425AR510 Description: Quantifoil® R 5/10, 400 Mesh, Au Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q425CR510 Description: Quantifoil® R 5/10, 400 Mesh, Cu Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q425NR510 Description: Quantifoil® R 5/10, 400 Mesh, Ni Pack: 25 Pack Price: $0.00 Add to Quote:
Cat #: Q450AR510 Description: Quantifoil® R 5/10, 400 Mesh, Au Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q450CR510 Description: Quantifoil® R 5/10, 400 Mesh, Cu Pack: 50 Pack Price: $0.00 Add to Quote:
Cat #: Q450NR510 Description: Quantifoil® R 5/10, 400 Mesh, Ni Pack: 50 Pack Price: $0.00 Add to Quote:
