These new SEM grids are designed to aid in the identification and localization of SEM specimens when placed on standard SEM stubs.

  • Referring to the annular rim identifies north, south, east and west.
  • The four quadrant markers are tapered towards the center.
  • 100 Radial sectors are easily identified by reference to decimal numbers in the annular rim and alphabet letters in the four quadrants.
  • A matte surface on one side is for correct positioning – matte side up.

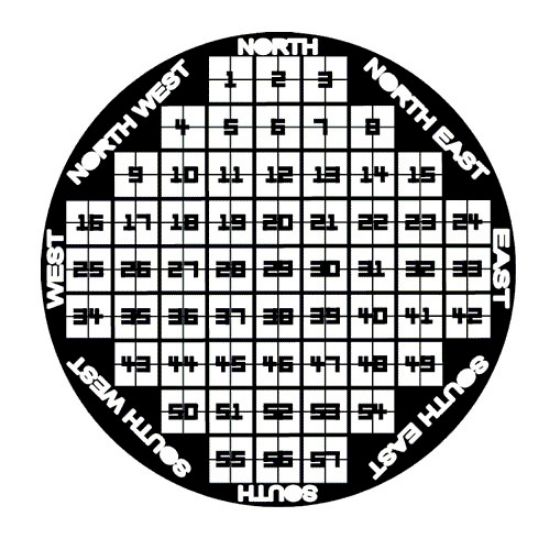

Type SEMF2

The larger cells are identified using numbers from 1 – 57. Each large cell is sub-divided into 4, making a total of 228 identifiable cells by reference to their number and geographical location.

Overall Diameter: 10 mm
Overall Thickness: ~50 µm
Material:  Nickel
SKU: 80102-Ni
Pack: 10 Vial
Products specifications
Attribute name Attribute value
Material Nickel
