Stage Micrometer, Sm-6 With Calibration

EMS is proud to add to our already extensive line -- a new wide range of Microscopy Calibration Standards and Standard Graticules, which are manufactured in the USA. This new line adheres to extremely tight tolerances and all of them are available with or without Secondary or Direct NIST certification.

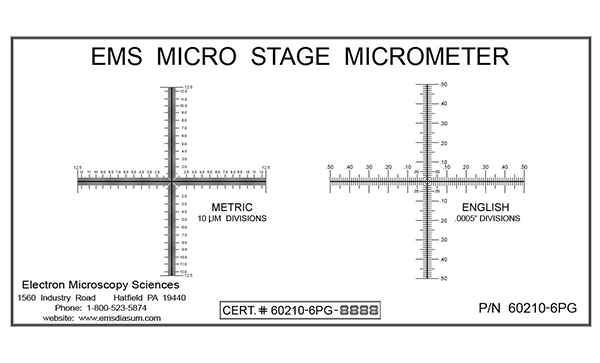

Model SM-6

1.0 inch/25 mm X&Y Axis Linear Scale (0.0005"/10µm div.)

Same scale as SM-5, but smaller division.


Glass Size 1.5" x 3" (38 mm x 75 mm).
Scale Length 1 inch (English) X & Y axis
25 mm (Metric) X & Y axis
Divisions English = 0.0005"; Metric = 10µm (0.01 mm)
With numerical labeling every 0.1 mm and 0.05"

With Calibration

SKU: 60210-6PGC
Pack: Each
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
