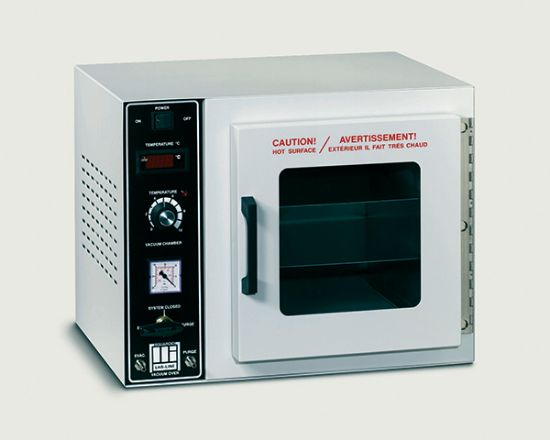

Vacuum Oven 3608-6 240V, Dial Thermometer

The Most Popular, Multipurpose Vacuum Ovens!

  • 220°C (428°F) Maximum temperature
  • Two control configurations and display options
  • 0.44 cu. ft (12.5L) and 2.3 cu. ft (65 L)
  • 24 Months Warranty


  • Operating temperature range from ambient +5°C to 220°C (428°F)
  • Vacuum level displayed on gauge from 0 to 30" Hg (76.2cm)
  • Vacuum Ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C @ 100°C; 25" Hg and built-in oven-temperature protection

Product Description

  • Radiant warm wall heating sustrem provides optional uniformity
  • Conserves chamber space for drying, curing, vacuum embedding, and plating applications
  • Silicone door gasket and a positive latch door maintains the seal for all vacuum levels
  • Exclusive Polycarbonate safety shield protects door glass
  • Two removable aluminum shelves including standard
  • Vacuum fittings require 0.25" (0.6 cm) I.D. tubing
  • Easy-to-clean #304 stainless steel chamber interior
  • Powder coated heavy gauge steel exterior construction.

Product Specifications

Chamber inch (cm) Overall inch (cm) Chamber Vol cu. ft (l) Net Wgt lbs (kg) Ship Wgt. lbs (kg)
10 (25) 10 (25) 12 (30) 19.8 (50) 16.25 (41) 16 (41) 0.7 (19.8) 83 (38) 130 (59)

Operating Specifications

Temp Range °C
Rise Time (Ambient to 100°C) Control@100°C 25" Hg Uniformity @100°C, 25" Hg Vacuum Range
Ambient +5C to 200°C 4 hours* ±1.0°C ±4.0°C 0-30" Hg

*Specifications determined at 150°C

SKU: 63236-20
Pack: Each
Please request a quote for this item. Click the "Q" graphic or "Add to Quote".
Products specifications
Attribute name Attribute value
Voltage 240V
Wattage 600
