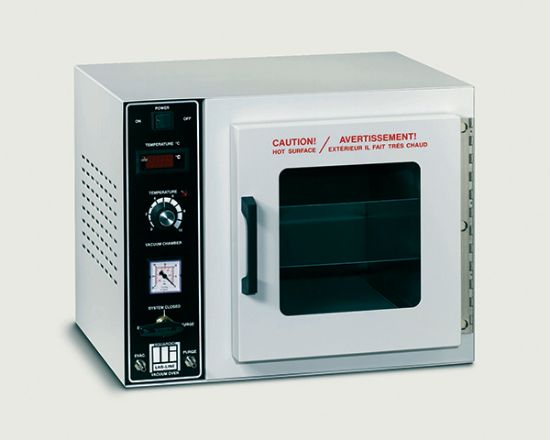

Vacuum Oven 3618-5 120V, Dial Thermometer
The Most Popular, Multipurpose Vacuum Ovens!
- 220°C (428°F) Maximum temperature
- Two control configurations and display options
- 0.44 cu. ft (12.5L) and 2.3 cu. ft (65 L)
- 24 Months Warranty
Operation
- Operating temperature range from ambient +5°C to 220°C (428°F)
- Vacuum level displayed on gauge from 0 to 30" Hg (76.2cm)
- Vacuum Ovens feature a hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C @ 100°C; 25" Hg and built-in oven-temperature protection
- The programmable microprocessor- based temperature control on Model 3618P Vacuum Ovens run at a single set point or utilize a 24-step program of ramps and dwells. These vacuum ovens features
independent vacuum and purge needle values
Product Description
- Radiant warm wall heating sustrem provides optional uniformity
- Conserves chamber space for drying, curing, vacuum embedding, and plating applications
- Silicone door gasket and a positive latch door maintains the seal for all vacuum levels
- Exclusive Polycarbonate safety shield protects door glass
- Two removable aluminum shelves including standard
- Vacuum fittings require 0.25" (0.6 cm) I.D. tubing
- Easy-to-clean #304 stainless steel chamber interior
- Powder coated heavy gauge steel exterior construction.
Product Specifications
| Chamber inch (cm) |
Overall inch (cm) |
Chamber Vol cu. ft (l) |
Net Wgt lbs (kg) |
Ship Wgt. lbs (kg) |
| W |
H |
D |
W |
H |
D |
| 14 (36) |
14 (36) |
20 (51) |
25 (64) |
22 (56) |
25 (64) |
2.3 (65.1) |
2.3 (65.1) |
295 (134) |
Operating Specifications
Operating
Temp Range °C |
Rise Time (Ambient to 100°C) |
Control@100°C 25" Hg |
Uniformity @100°C, 25" Hg |
Vacuum Range |
| Ambient +5C to 200°C |
2 hours |
±1.0°C |
±5.0°C |
0-30" Hg |
