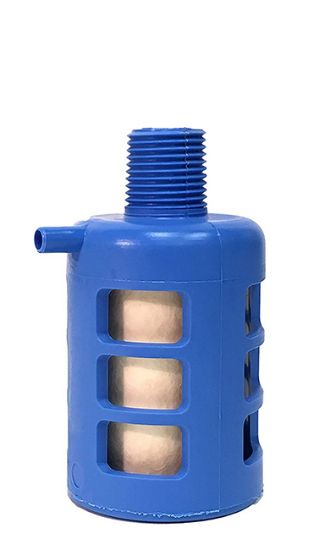

Vacuum Pump Exhaust Filters for Vacuum Rotary Vane Pumps remove all visible oil mist and smoke from vacuum pump exhaust, even when it is saturated with oil. The high efficiency filter cartridge continuously drains the collected liquid, allowing the user to recover expensive lubricating fluid. Filters are for pumps with flow ratings ranging of 3 cfm and non-hazardous/non-corrosive applications. Port size is ½" NPT.
Features
- Eliminate 99% oil mist and smoke from vacuum pump exhaust
- Prevent oil accumulation in ductwork
- Recover expensive lubricating oils, and automatically return filtered oil to pump
- Eliminate potential OSHA and EPA violations
- The filter assemblies are shipped with filter cartridges, pressure gage (20 cfm and larger), and final filter pad
Specifications
| Maximum Flow Rate |
3 CFM |
| Material |
Nylon |
| Maximum Seals |
None |
| Maximum Temperature |
250°F (121°C) |
| Shipping Pressure |
15 PSIG |
| Dimensions |
2" Dia. x 3.7" H |
| Weight |
0.25 lbs (0.1 kg) |
| Port Size |
½" NPT |
