EMS introduces the solution for a compact vacuum solution for all small laboratory equipment

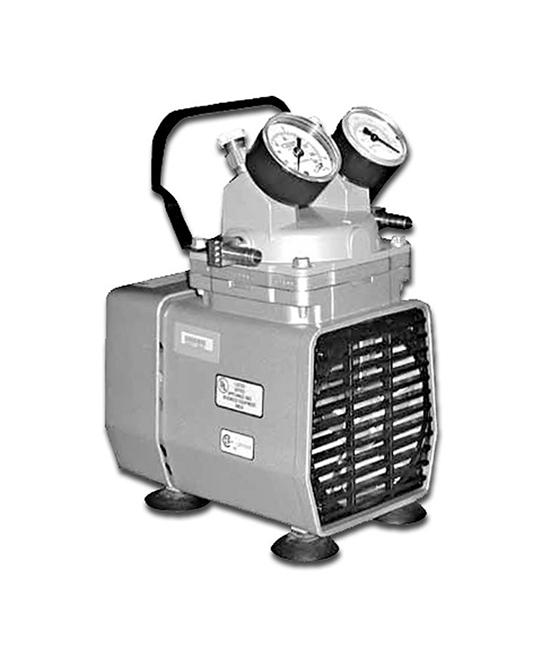

A diaphragm oil-free pump that may be used on glass, stainless, as well as plastic desiccators. With a hydrophobic PTFE in-line filter membrane in place, particles larger than 0.1 micron are contained. With 1/8 HP, maximum pressure of 50 PSI and a maximum temperature of 38°C, the pump prevents fluid and air contamination, as well as exhaust back- up. The pump features an oilless operation, rugged construction, easy hose connections, and 50 PSIG maximum continuous pressure.
Features
- Prevents all fluid and air contamination of vacuum pumps
- May be used to prevent hazardous exhaust back up
- Oilless Operation
- Rugged Construction/Low Maintenance
- 50 PSIG Maximum Continuous Pressure
Specifications for Diaphragm Vacuum/Pressure Pump
| RPM/HP |
1/8 |
| Free Air Capacity |
1.1 cfm (31 L/min) |
| Maximum Vacuum |
25" Hg |
| Maximum Pressure |
50 PSI |
| Tubing Connections |
½" NPT(F) with ⅜" ID hose barb connectors included |
| Max Temperature |
38°C ambient |
| Noise Level |
68 dB(A) |
| Shipping Weight |
18 lb |
| Dimensions |
7.6 W x 10.1 H x 6.5 D" |
| Electrical |
115 V, 60 Hz/220 V, 50 Hz |
