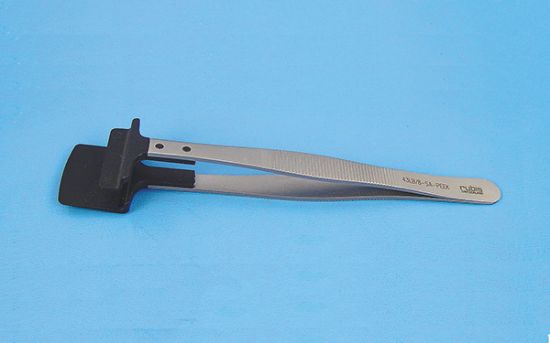

Made from PEEK an ESD safe soft, conductive fiber, with heat resistance up to 250°C. Clean-room compatible. These tweezers are specially designed to handle different fragile and delicate materials of gallium or silicon wafers. They have a smooth polished non-glare surface with a satin finish. The tweezers have stopping pins turned up on lateral edges and graduated lower paddles prevent the wafer from slipping. The tweezers are also available in Peek material. Peek: An ESD Safe, 105Ω x cm. Soft, conductive fiber, with heat resistance up to 250°C (short exposure 300°C). (Not compatible with nitric and sulfuric acids.)
Length: 138 mm (5½").
B = 27 mm (1-1/16")
C = C = 21 mm (¾")
D = 4 mm (⅙")
E = 6 mm (¼")
F = 5 mm (⅕")
M = 11 mm (½")
N = 1.5 mm (1/16")
R = 61 mm (2⅓")
S = 35 mm (1⅜")
