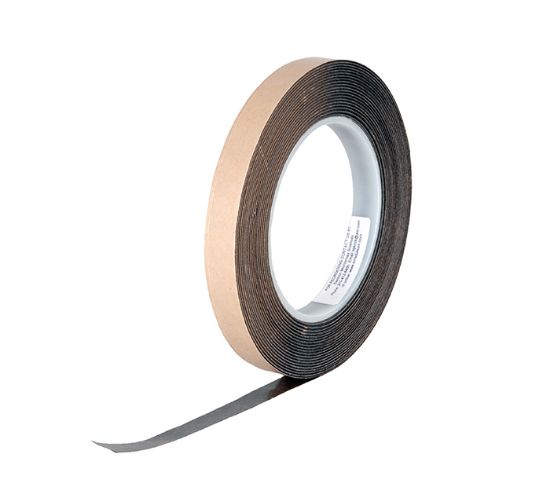

XYZ-Axis Electrically Conductive, 3M™ Double Sided Tape, 9712, 6.35mm (W) x 32.9m (L)

XYZ-Axis Electrically Conductive, 3M™ Double Sided Tape 9712

Conductive Tape 9712 is an isotropically conductive pressure sensitive tape. The tape consists of a 3M adhesive loaded with conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance with very high conductivity.

The 9712 Tape is an excellent choice when needing to bond your samples for all SEM work.

Specification:

Adhesive Type: Filled Acrylic
Filler Type Conductive Fibers
Release Liner Silicone treated PolyCoated Kraft Paper
Remover: Acetone
Thickness Approximate: Tape Only; .005" (0.127 mm)
Release Liner; .004" (0.010 mm)
Temperature Range: Short Term Exposure; 250°F (121°C)
Long Term Exposure; 158°F (70°C)

Electrical Properties: Contact Resistance

Substrate Tested

Aluminum/ Aluminum/ Copper/ Copper/
Aluminum Stainless Steel Aluminum Copper
<24Ω <21.5Ω <16Ω <.66Ω

Based upon four wire (Kelvin probe) resistance measurements made with crossed pieces of Foil/Type 9712 or 9713/Rigid plate construction using a 1.0" x 1.0" square piece of 3M tape Type 9712 or 9713. The rigid metal surface was prepared with a Scotch-Brite™ pad to roughen the surface and cleaned with isopropyl alcohol.

Adhesion Properties:

  20 Min at 24 Hours at 20 Min at 24 Hours at
Substrate 72°F (22°C) 72°F (22°C) 158°F (70°C) 72°F (22°C)
Stainless Steel >41(457) >42(468) >43(479) >53(590)
Aluminum >35(390) >33(367) >36(401) >43(479)
Copper >47(412) >39(434) >43(479) >55(613)
SKU: 77808-63
Pack: 36 yd
$39.00
Products specifications
Attribute name Attribute value
Core 3"
