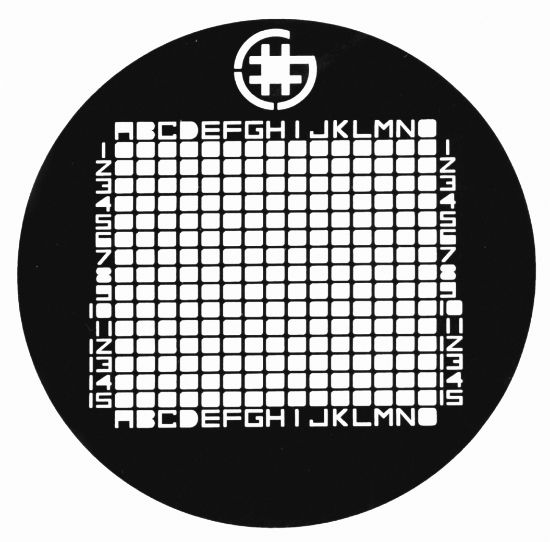

ALPHA/NUMERIC INDEX GRIDS, NICKEL 100/vial

By employing a rectangular mesh the support value of the grid has been increased, offering a value intermediate between the most commonly used grid (200 Lines/") and (300 Lines/"/). Each grid rectangle is asymmetrical having different outlines in all four corners. This allows for the orientation of the grid to be determined at microscopic levels. The index feature enables the position of each grid to be identified with reference to the letters A-O along the horizontal axis and the numbers 1-15 along the vertical axis. The logo in the rim allows for precise orientation and aids in the identification of each side. Grids are available in Copper, Copper/Palladium, Nickel, and Gold.

Specifications

  Horizontal Axis: Vertical Axis:
Mesh: 200 Lines/" 250 Lines/"
Pitch: 125 microns 105 microns
Bar Width: 20 microns 15 microns
Hole Width: 105 microns 90 microns
Overall Diameter: 3.05 mm 3.05 mm

Corner Outline with Reference to Logo in the Rim

Top Right:   Right Angle
Top Left:   Inverted Quadrant
Bottom Right:   Diagonal Line
Bottom Left:   Quadrant
SKU: G200F4-Ni
Pack: 100 Vial
$69.00
Products specifications
Attribute name Attribute value
Material Nickel
