The New Standard in Precision Tissue Slicing.
Advanced Vibratome Technology for Life Science and Biomedical Research

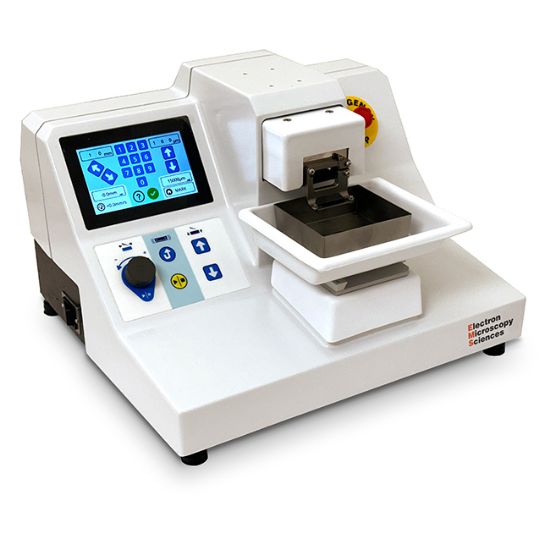

The EMS 9000SMZ Vibratome is our most advanced vibrating microtome, engineered for precise sectioning of live and fixed brain tissue. Trusted by neuroscience, cardiac, lung research, liver research, organoid research and plant research labs worldwide.
When your research depends on high-integrity tissue slices, compromise is not an option. The 9000SMZ Vibrating Microtome delivers unmatched control, slice quality, and tissue viability — making it the ideal vibratome for applications across electrophysiology, imaging, pathology, toxicology, and organ research
Features
- Proven high-quality slices with high cell viability
- No chatter marks
- Variable blade frequency and amplitude to cater for all tissue types
- Precise control of advance speed, adjustable during slicing, for the perfect slice
- Measure and correct blade Z-axis deflection (down to 0.1μm), essential for quality slices
- Slice window mode for fast, automatic sectioning
- Clear visibility of tissue; positional adjustments can be made during slicing
- Store up to 8 user slice profiles for easy recall
| Slices taken from 9 month-old rats |
 |
|
 |
| Area CA1 |
|
Entorhinal Cortex |
Vibrating Microtomes Brochure
| Specifications |
| Section Thickness Step Size |
0.001mm |
| Bath Table Rise & Fall Speed |
1.0mm/sec maximum |
| Maximum (vertical) Travel of Bath Table |
19mm |
| Cutting Head Advance Speed |
Minimum: -5.0mm/sec (-1.00 during slicing) |
| |
Maximum: +5.0mm/sec (+1.00 during slicing) |
| Cutting Head Retraction Speed |
5.0mm/sec |
| Maximum Travel of Cutting Head |
40mm |
| Blade Oscillation Frequency |
Minimum: 20Hz |
| |
Maximum: 120 Hz |
| |
(amplitude dependent) |
| Frequency Step Sixe |
10 Hz (with 85 Hz option) |
| Blade Oscillation Amplitude |
Minimum: 0.5mm (nominal) |
| |
Maximum: 3.0mm (nominal) |
| Amplitude Step Size |
0.25mm (nominal) |
| Power Requirements (Selectable) |
115VAC 60Hz, 230VAC 50Hz |
| Power Rating |
100W |
| Fuse Rating |
115V: T2A 250VAC |
| |
230V: T2A 250VAC |
| Light Source |
100-240VAC 3W |
| Dimensions |
410 mm W x 400mm D x 270mm H |
| |
(exc. light source and microscope) |
| Weight |
33 kg/72.75lbs |
| Box Shipping Weight |
60 kg/132.28 lbs |
