Graphene On Silicon Nitride, 2.5 µm, 3-5 Layers
TEM Grids (2.5 µm holes)
Characteristics
- Four thicknesses of CVD graphene
- Available in either 1, 2, 3-5 or 6-8 layers
- TEM Substrate

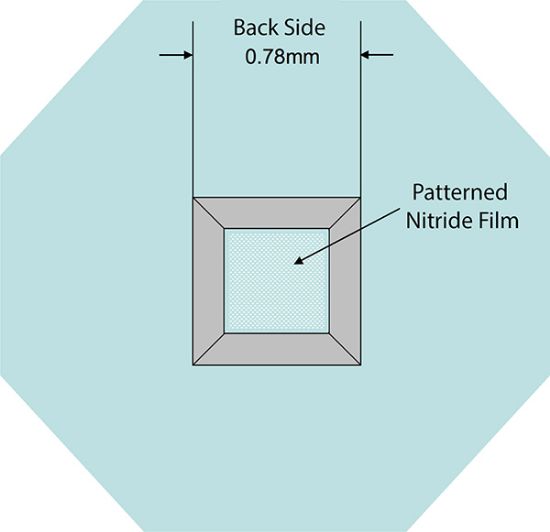

- 200 µm thick 3.0 mm hexagonal silicon substrate with a 0.5 x 0.5 mm aperture and 200 nm thick silicon nitride membrane with approximately 6,400 2.5 µm holes
- Graphene coverage of the TEM grid is better than 75%
Appearance
Solid hexagonal disk with a greenish hue. The graphene film appears as a near-transparent to light-grey film on the surface of the microporous Silicon Nitride membrane.
Specifications
Type |
Thickness of the Graphene |
Transparency |
TEM Grid/AFM Substrate |
Support Film |
3-5 Layers |
1.0-1.7 nm |
~85.8-90.4% |
Hexagonal Silicon |
Silicon Nitride w/2.5 µm Holes |
SKU:
3GSiN2.5um-25
Pack:
25 Pack
