Constructed from the highest quality material and small as its name, this miniLight offers the most universal light source, handling many tasks that require a bright light but with a small foot print that fits into most locations.
miniLight components:
Lamp – Available with 1 or 2 W power LED in 3 models each producing 15°, 28°, and 42° light cones.
The miniLight's main component is the miniLamp. This is a small but powerful light source. It is able to brightly illuminate small areas with the following properties:
- Shines very bright on a small area
- Low dissipation loss – no hot parts
- Long life – lifetime of a LED is 50,000 hours
- Little power needed (1 watt)
- Adjustable intensity
- CE compatible
Gooseneck – For the mounting of the miniLight
- Flexible – easy to adjust
- Both ends come with different threads: one for the minilamp and one which connects to the base
- Made from brassand is anodized black
- End-to-end measures 184mm (172mm actual length)
Magnetic Base – For mounting the miniLight
- Made from stainless steel with the magnet encased
- Threaded center for mounting the gooseneck or mounting bar
- Easily affixes to any magnetized surface
- Affix force is 64N
Steel Base – For mounting the MiniLight with a heavy base
- Stainless steel
- Threaded center for gooseneck or mounting rod
- Weight 450 g (1 lb)
- Measures: 65mm diameter x 18mm height
Mounting Rods – For mounting the miniLight in a stable position
- Made from stainless steel
- Easy to mount and adjust the lamp with adjustable joint
- Short rod to mount Lamp – Long Rod to mount to the Steel Base
Joint – Connect the Mounting Rods
This joint is used to connect the mounting rod together in any angle, any position so the Lamp shines the way you want
- Very precisely made
- Anodized aluminum
- Knurled tighten screw
Power Supply 12V – to power the miniLight

Supply with international AC-plug for feeding miniLight lamp with a constant tension of 12Volts. It is characterized by the following properties:
- Input voltage 90-264VAC
- Input frequency 47-63Hz
- Output Voltage 12V
- Power 8W
- AC-Connector for EU, GB, US, AUS
- Operating temperature 0-40°
- Weight 135gr. (without AC-plug)
- Dimensions 69.2x43.3x29.8mm without AC plug
- International approval UL60950, EN60950, SAA, PSE, CE, FCC Part 15 Class B
Application

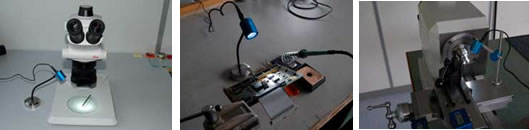

Some applications that the miniLight is ideal for:
- Micro-technical working places, mounting, inspection
- Micro-electrical assembly
- Microscope, microbiology, cell counting
- Block trimming, etc.
Technical Data:
|
ML-10 Series |
ML-20 Series |
Supply: |
110-230 VAC (12V (±30%) |
110-230 VAC (12V (±30%) |
Currant cons.: |
150 mA@12V, |
300mA@12V |
Power LED: |
1 Watt |
2 Watt |
Flux lumen min.: |
91 lumens |
160 lumens |
Flux lumen typical: |
100 lumens |
180 lumens |
Temp. case: |
<50°C @tamb=25°C |
65°C @tamb=25°C |
Light cone:* |
15° / 28° / 42° |
15° / 28° / 42° |
Fixation: |
M6 ou D28 |
M6 ou D28 |
Dimensions: |
28mm Dia x 34mm L |
28mm Dia x 34mm L |
Weight: |
40g |
40g |
Accessory |
power supply, steel base, magnetic base, gooseneck, fixation bare, joint |
power supply, steel base, magnetic base, gooseneck, fixation bare, joint |
*Definition of light cone: Angle in which the intensity is on the border of the cone half than in the middle of the cone.
Attention:
Never look direct in the light of the lamp, otherwise you risk to injure your eyes
