CD-flat™ for Automated S/TEM Imaging and Metrology

Now Available

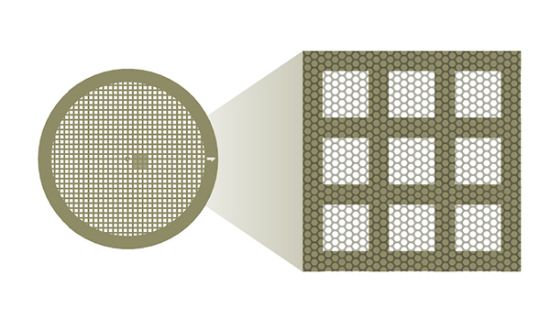

CD-flat™ is designed for CD-TEM metrology of large specimens, like 3D NAND FIB lamella.

Grid Material	Copper Grid
Mesh Size	200 or 300 Mesh
OD	3.05 mm
Film Material	Holey Carbon
Film Thickness	40 nm thick
Hole Pattern	8/2 hole pattern (8 um diameter, 2 µ spacing between holes)

Supplier: Electron Microscopy Sciences

Pack: Each

Cat #	Description	Hole Size	Hole Spacing	Mesh	Grid	Pack	Price	Quote	Quantity
Cat #: CDFT822-50	Description: CD-Flat™, Holey Carbon, Large Specimen, 200 Mesh	Hole Size: 8.0 µm	Hole Spacing: 2.0 µm	Mesh: 200	Grid: Cu	Pack: 50 Pack	Price: $564.00	Add to Quote:
Cat #: CDFT823-50	Description: CD-Flat™, Holey Carbon, Large Specimen, 300 Mesh	Hole Size: 8.0 µm	Hole Spacing: 2.0 µm	Mesh: 300	Grid: Cu	Pack: 50 Pack	Price: $564.00	Add to Quote:
