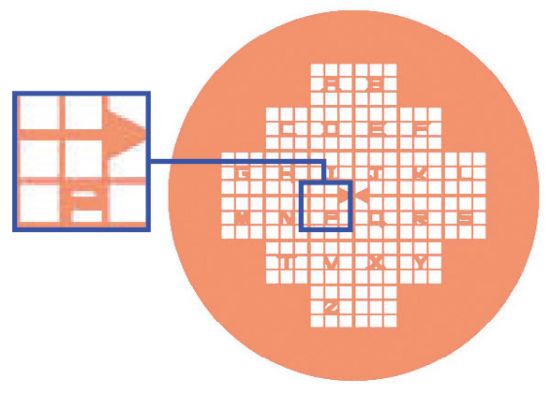

Finder 200 Mesh F2 Cu/Pd 100/Vial

3.05 mm diameter, 0.7 mil (18µm) thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au),
Copper/Palladium (Cu/Pd=CP)

  • Locator Grid
  • Reference/Index Grid

1This grid has 172 complete square cells and each cell is identified by an 8 bit base 2 binary number symbol representation. 0 is represented by a short rounded pillar. There is no zero cell.
The first cell located at top left is binary 1, digit 1 is represented by a long pillar at the extreme right position on the bottom horizontal line of cell one: each individual subsequent cell is then easily identified. Lines/Inch ~150.

2 Thick bars dividing regions into 6 thin bar areas, which are identified by a numeric system.
3 Thick bars dividing regions into 9 thin bar areas, which are identified by alphabetical letters located in the center of the grid.
4 Each of the 322 grids squares, can be identified by reference to its unique combination of base 2 binary number and alphabet symbol (A-T). 0 is a short rounded solid pillar and 1 is a longer rounded solid pillar.
5 The block of 625 (25 x 25) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 25 cells has a central alphabet letter from A to Y for identification purposes.
6 The block of 1152 (32 x 36) individual cells is divided into smaller blocks bounded by thicker crenellated bars. Each small block of 36 (6 x 6) cells has a central number from 1 to 32 for identification purposes.

      Technical Data µm
Type Cat# Packed Pitch Hole Bar
150 mesh1 G150F1-Cu 100/Vial 165 ±0.5 ~140 variable ~25 variable
  G150F1-Ni 100/Vial 165 ±0.5 ~140 variable ~25 variable
  G150F1-Au 50/Vial 165 ±0.5 ~140 variable ~25 variable
200 mesh2 G200F1-Cu 100/Vial 125 90-100 35-12
  G200F1-Ni 100/Vial 125 90-100 35-12
  G200F1-CP 100/Vial 125 90-100 35-12
  G200F1-Au 50/Vial 125 90-100 35-12
200 mesh3 G200F2-Cu 100/Vial 125 106 25-12
  G200F2-Ni 100/Vial 125 106 25-12
  G200F2-CP 100/Vial 125 106 25-12
  G200F2-Au 50/Vial 125 106 25-12
200 mesh4 G200HF3-Cu 25/Vial 125
  G200HF3-Ni 25/Vial 125
  G200HF3-Au 25/Vial 125
300 mesh5 G300F1-Cu 100/Vial 83 63 20
  G300F1-Ni 100/Vial 83 63 20
  G300F1-Au 50/Vial 83 63 20
400 mesh6 G400F1-Cu 100/Vial 62 47 15
  G400F1-Ni 100/Vial 62 47 15
  G400F1-Au 50/Vial 62 47 15

* The price for quantities of 10 or more vials will appear as the single vial price in the EMS shopping cart. An adjustment will be made to the cost by the EMS customer service when the order is processed.

Manufacturer: Gilder Grids
SKU: G200F2-CP
Pack: 100 Vial
A: 125
B: 106
C: 35-12
$64.00
PRICE BREAKS - The more you buy, the more you save
Quantity 10+
Price $63.50
Products specifications
Attribute name Attribute value
Mesh 200
Material Copper/Palladium
