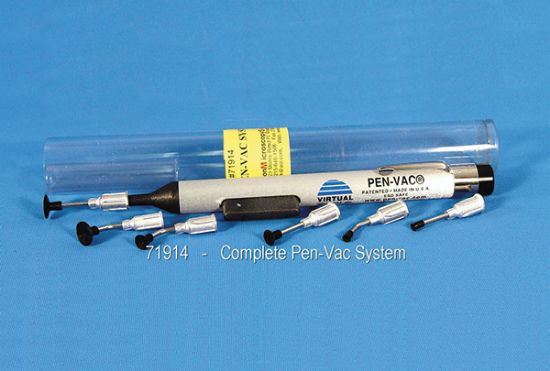

Complete Pen Vac™ System

Pen Vac™ is a new improved way to handle small, flat surface objects. Beside the electronics assembly industry, jewelers, model builders etc. Pen Vac™ is ideal for EM work as well. It can be used to handle grids, pick up stubs, align membranes, work with glass slides, cover slips and much more. Holds up to one minute.


  • Lifts up to 50 grams
  • Totally self-contained vacuum
  • Light-weight, less than one ounce
  • Fits in your pocket like a pen
  • Brushed aluminum body
  • Optional storage compartment for vacuum tips and cups
  • No power supply needed
  • Available in various sizes
  • Interchangeable vacuum probes

Pen-Vac™ comes with

A variety of Vacuum Probes, complete with a vacuum cup attached and it is available with plastic or aluminum hubs. Straight and angled to suit your applications. The stainless steel needle portion of the probes are one-half inch long.

Vacuum Cups come in a wide range of materials. We offer the Static Dissipative and the Conductive Cups that provide ESD protection for electrostatic discharge of sensitive components. Cups comes in three sizes: ⅛" (3.17 mm); ¼" (6.35 mm); and ⅜" (9.52 mm).

Set consists of:

One Pen with 6 Probes and Cups. (6 Probes: 3 angled, ⅛", ¼", ⅜" and 3 straight ⅛", ¼", ⅜").

SKU: 71914
Pack: Each
