3 Dimensional Cell Culture Plate
PAMCELL™ is a 3-dimensional cell culture plate which enables the formation of a wide range of uniformly sized spheroids. Plates are composed of hexagonally-arrayed spherical particles coated with cells adhesively controlled functional groups on the surface. These plates allow for the control of cell-to-substrate and cell-to-cell interactions.
Features
- Enables formation of a wide range of uniformly sized spheroids
- Provides various patterns on a single plate without physical barriers
- Optically transparent for in situ microscopic observation in automated high throughput screening systems
- Easy to exchange culture medium (spheroids are stably attached on plate surface)
Plates are available in two types
- R Series Plates (96-well/6-well)

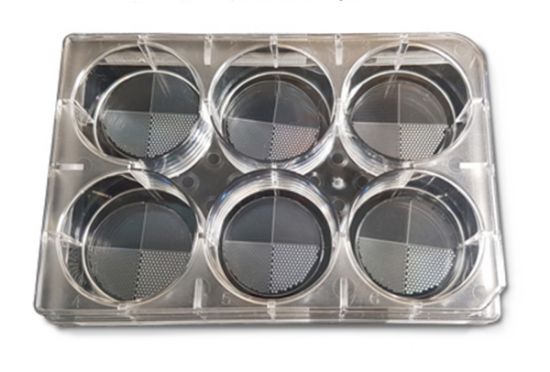

R Series, 6-well plates
For uniform, large spheroid production on a culture plate with uniform pattern and surface condition Suitable for HTS Screening (Imaging automation).
| Product |
R-100 |
| Micropad arrangement |
Square |
| Diameter of micropad (µm) |
100 |
| Gap between micropads (µm) |
100 |
| 3D Spheroid formation |
Cell proliferation |
| Spheroid production (spheroids/well or unit area) |
96-well |
800 |
| cm2 |
2,500 |
Width of line: 3 µm w/48 lines
R-100 Plate (Spheroid dia: 80 ~ 130µm)
- For small sized cells (ex. tumor cells)
- Anti-cancer drug screening (Ic50), Toxicity test
- Patient tumor cells + stromal cells co-culture
Applications
1. Spheroids (Tumors, Stem cell)
- HTS (Anticancer, Toxicity), Disease models
- Tissue spheroid mass production (~800 spheroids/96-well)
2. Single cell assay (Response/Differentiation)
