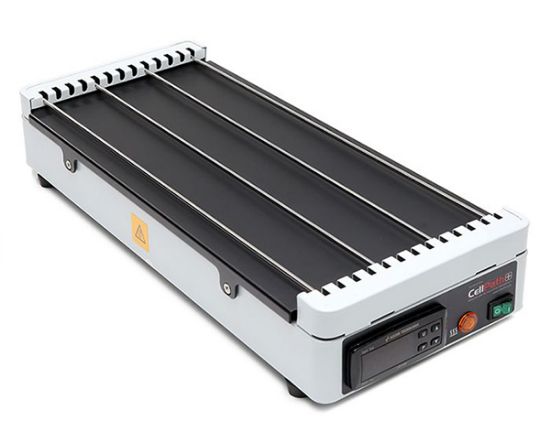

Slimline Slide-Drying Hotplate

Digitally controlled ultra-fast heating system with a slim profile.

The Slimline Slide Drying Hotplate warms up quickly, providing efficient drying of paraffin tissue sections with precise temperature control.
Microscope slides are supported by four moveable rails which allow heated air to pass under the slides for quick drying. Users can angle slides at 10° to promote drainage. Additionally, the rails can be completely removed from the hotplate allowing slides to be placed directly on the heated surface.
An anti-microbial paint finish inhibits the growth of viruses and bacteria. The heating area features a matte black powder finish that provides visual contrast with paraffin tissue sections.

  • Digital temperature control allows temperature to be set exactly to specimen requirements.
  • Moveable slide support rails for different slide sizes.
  • Anti-microbial finish.
  • Memory function for desired start-up temperature.
  • Mini circuit breakers eliminate the need for fuse replacement.
  • Optional stainless-steel lid to improve temperature control and reduce drying times.


Temperature Range Ambient to 95° C (±1° C) at 20° C
Power Supply/Rating 110-230V AC, 50-60 Hz
Dimensions 18.3 cm x 45.0 cm x 7.55 cm (D x W x H)
Weight 2.2 Kg

Has a Slimline design that supports microscope slides with four removable rails that allows heated air to pass under. Dimensions: 18.3 cm x 45.0 cm x 7.55 cm (D x W x H)

SKU: 71321-01
Pack: Each
